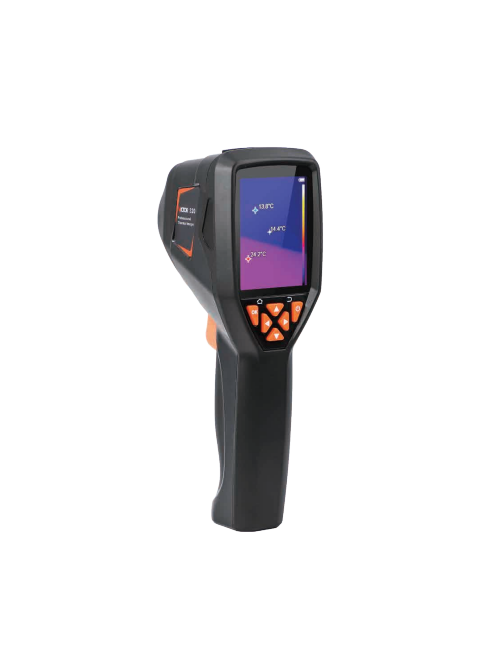

VICTOR 320M Thermal Image Camera (120x90, 8–14 μm, -20°C ~ 400°C)

Infrared Resolution: 120 × 90

Super Resolution: Not supported

Working Wavelength: 8–14 μm

Frame Rate: 25 Hz

Thermal Sensitivity (NETD): 60 mK @ 25°C

Field of View (FOV): 38° × 50°

Lens: 2.3 mm F1.1

Temperature Measurement Range: -20°C~400°C

Measurement Accuracy: ±3°C or ±3% of reading

Emissivity: Adjustable from 0.01 to 1.00

Measurement Modes:

Full-screen max/min/center point

Area-based temperature measurement

Color Palettes

Iron Red

White Hot

Black Hot

Rainbow

Red hot

High Contrast

Green Hot

Lava

Visible Light Imaging: Not supported

Storage & Formats

Internal Storage: 8GB (stores approx. 20,000 images)

Image Format: JPG

Video Format: MP4

General Specifications

Supported Languages: Simplified Chinese, Traditional Chinese, English, French, German, Spanish, Dutch, Japanese, Korean, Arabic

Battery: Built-in 2600mAh rechargeable battery

Display Size: 2.8 inches

Device Color: Black

Weight: 260g

Dimensions: 70mm × 80mm × 200mm

Standard Accessories: USB Type-C cable, standard charger, lanyard, user manual
