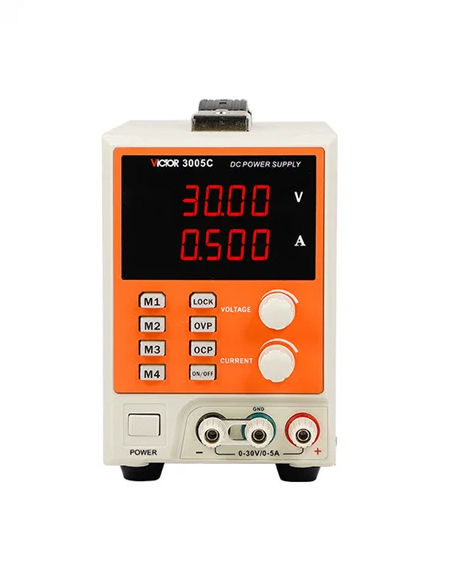

VICTOR 3005C Power Supply Stabilization (0 ~ 30V, 0 ~ 5A)

Output voltage: 0~30V

Output current: 0~5A

Power supply: AC220V±10% 50Hz

Display size: 84x53mm

Working conditions: Temperature:0~40℃ Relative humidity:≤80%RH

Storage conditions: Temperature: 0~60℃ Relative Humidity:≤85%RH

Lock function: Have

Weight: About 5KG

Size: 26.5x10.3x15.6cm

Cooling method: air cooling

Voltage regulation characteristics

Load Regulation: ≤0.1%+2mV

Power Regulation: ≤0.01%+3mV

Voltage resolution: 4-digit display: 10mV

Display accuracy: ±(0.5%+20mV)

Ripple: ≤2mVrms

Steady flow characteristics

Load Regulation: ≤0.1%+10mA

Power Regulation: ≤0.1%+3mA

current resolution: 4-digit display: 1mA

Ripple and Noise: ≤3mArms

Other features

OVP: 0-30V ±0.2%FS

Maximum voltage: 0-30V ±0.2%

OCP: 0-5A ±0.2%FS

Maximum current: 5A ±0.2%
