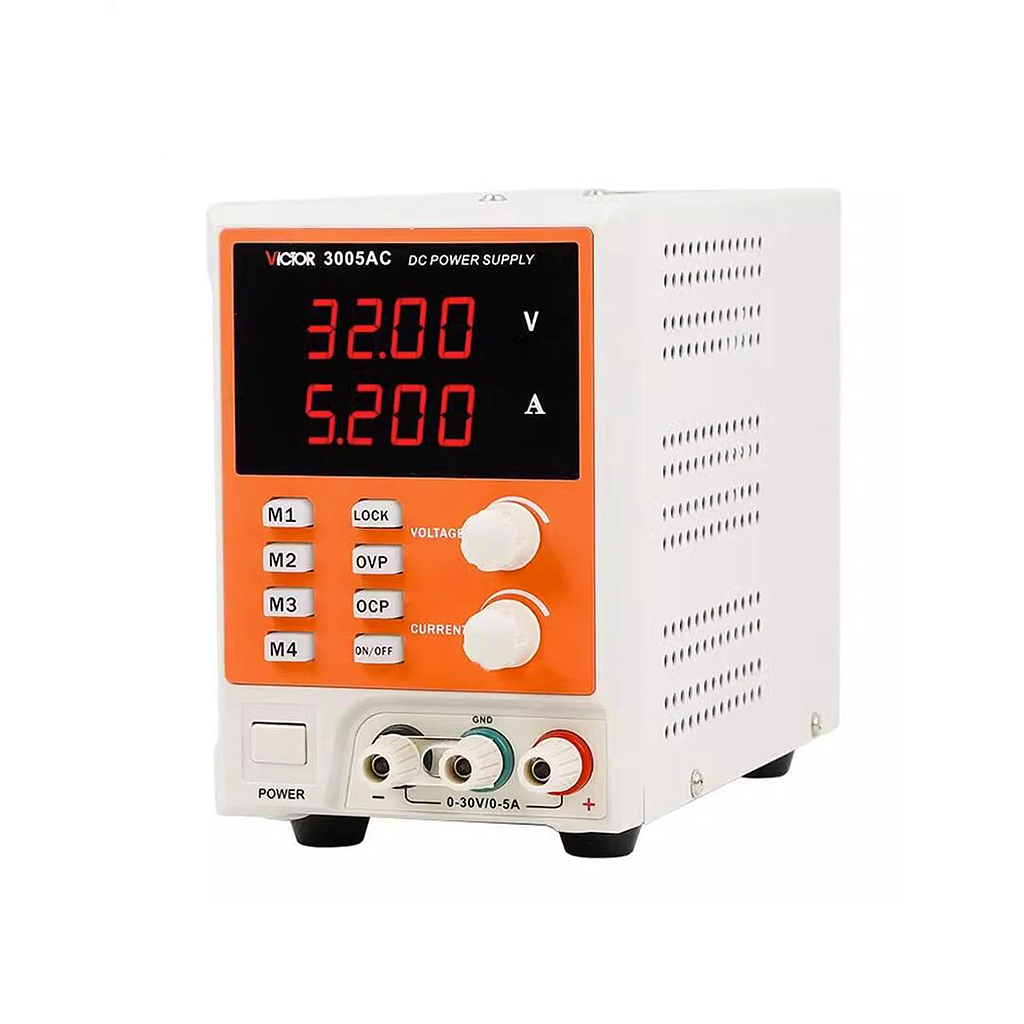

VICTOR 3005AC Power Supply Stabilization (0 ~ 30V, 0 ~ 5A)

Output voltage: 0~30V

Output current: 0~5A

Power supply: AC220V±10% 50Hz

Display size: 84x53mm

Working conditions: Temperature: 0~40℃ Relative humidity: ≤80%RH

Storage conditions: Temperature: 0~60℃ Relative Humidity: ≤85%RH

Lock function: Have

Weight: About 1.45KG

Size: 22.1x15.5x10.3cm

Cooling method: air cooling + aluminum

Voltage regulation characteristics

Load Regulation: ≤0.1%+5mV

Power Regulation: ≤0.01%+5mV

Voltage resolution: 4-digit display: 10mV

Display accuracy: ±(0.2%+5d)

Ripple: ≤10mVrms

Steady flow characteristics

Load Regulation: ≤0.2%+5mA

Power Regulation: ≤0.2%+3mA

current resolution: 4-digit display: 1mA

Ripple and Noise: 5mArms

Other features

OVP: 0-30V ±0.2%FS

Maximum voltage: 0-30V ±0.2%

OCP: 0-5A ±0.2%FS

Maximum current: 5A ±0.2%
