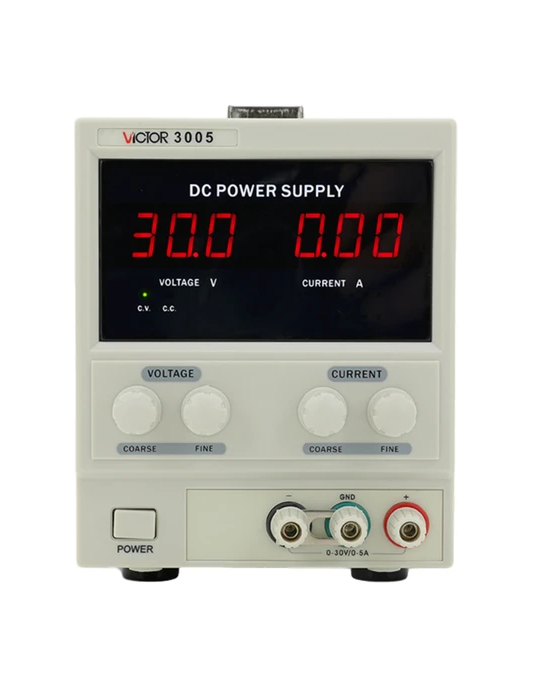

VICTOR 3005 DC Power Supply (0-30V, 5A)

Voltage output: 0-30V

Maximum current output: 5A

Working condition: (0-40)°C/≤85%RH

Storage condition: (-2-80)°C/<80%RH

Voltage stabilization feature

Output voltage: Continuously adjustable from 0 to rated voltage

Source effect: CV: 1×10^ˉ4+3mV

Load effect : CV: 1×10^ˉ4+3mV

Ripple and Noise: 0.5mV (RMS)

Voltage temperature coefficient: 300PPm/°C

Current stabilization feature

Output current: CC: Continuously adjustable from 0 to rated current

Source effect: CC: 2×10^-3 +3mA

Load effect: 5mA

Current temperature coefficient: 500PPm/°C

Display feature

Digital display accuracy: Voltage/current three-digit, Display accuracy: ± (0.4%+4d)

Size: 249*124* 141mm

Weight: 3755g

Power: 220V AC士10% 50Hz

Dimensions: 108* 59mm
