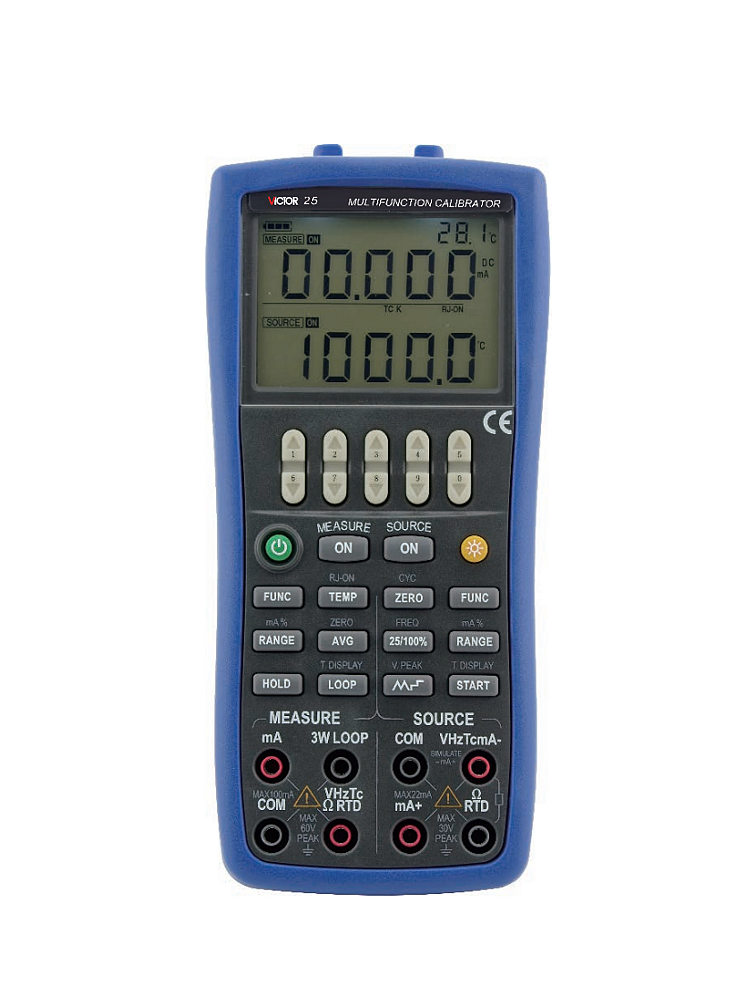

VICTOR 25 Multifunction Process Calibrator (-10～110mVDC, -0.1～11VDC, 0～22mADC)

SOURCE

DC millivolt

Range:-10 ～ 110mV

Accuracy= ±(% of the set value+% of range):0.02%+0.01%

Resolution:1uV

DC voltage

Range:-1 ～ 11V

Accuracy= ±(% of the set value+% of range):0.02%+0.01%

Resolution:10uV/0.1mV

DC current

Range: 0 ～ 22mA

Accuracy=±(% of the set value+% of range):0.02%+0.02%

Resolution:1uA

Sink current

Range:0 ～ 22mA

Accuracy±(% of the set value+% of range):0.02%+0.02%

Resolution:1uA

External power supply:5 ～ 28V

Resistance

Range:0 ～ 40KΩ

Accuracy= ±(% of the set value+% of range):0.02%+0.02%

Resolution:0.01Ω/0.1Ω/1Ω

Frequency

Range:1Hz ～100KHz

Accuracy:±2words

Resolution:0.01Hz/1Hz/0.1KHz/2KHz

Please see the Datasheet for detailed specifications
