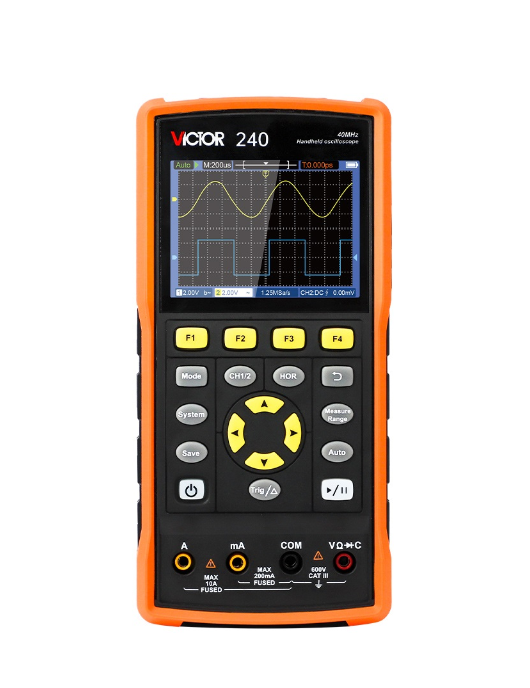

VICTOR 240 Handheld Digital Auto Oscilloscope (40MHz, 125 MSa/s, 2 Ch)

Bandwidth:40 MHz

Channel: 2

Sampling method:Normal, peak sampling

Real time sampling rate: 125 MSa/s (Dual channel), 250 MSa/s (single channel)

Record length:Maximum 8K for single channel, 4K for dual channel

Waveform refresh rate:10,000 wfms/s

Input coupling:DC, AC, grounding

Input impedance (DC coupling):1M Ω ± 2%, parallel to 16pF ± 10 pF

Probe attenuation coefficient:1x, 10x, 100x, 1000X

Maximum input voltage:400V (DC+AC peak value)

Time base range:5ns/div-1000s/div, Step by 1-2-5

Vertical sensitivity:10mV/div～10V/div

Vertical resolution:8bit
