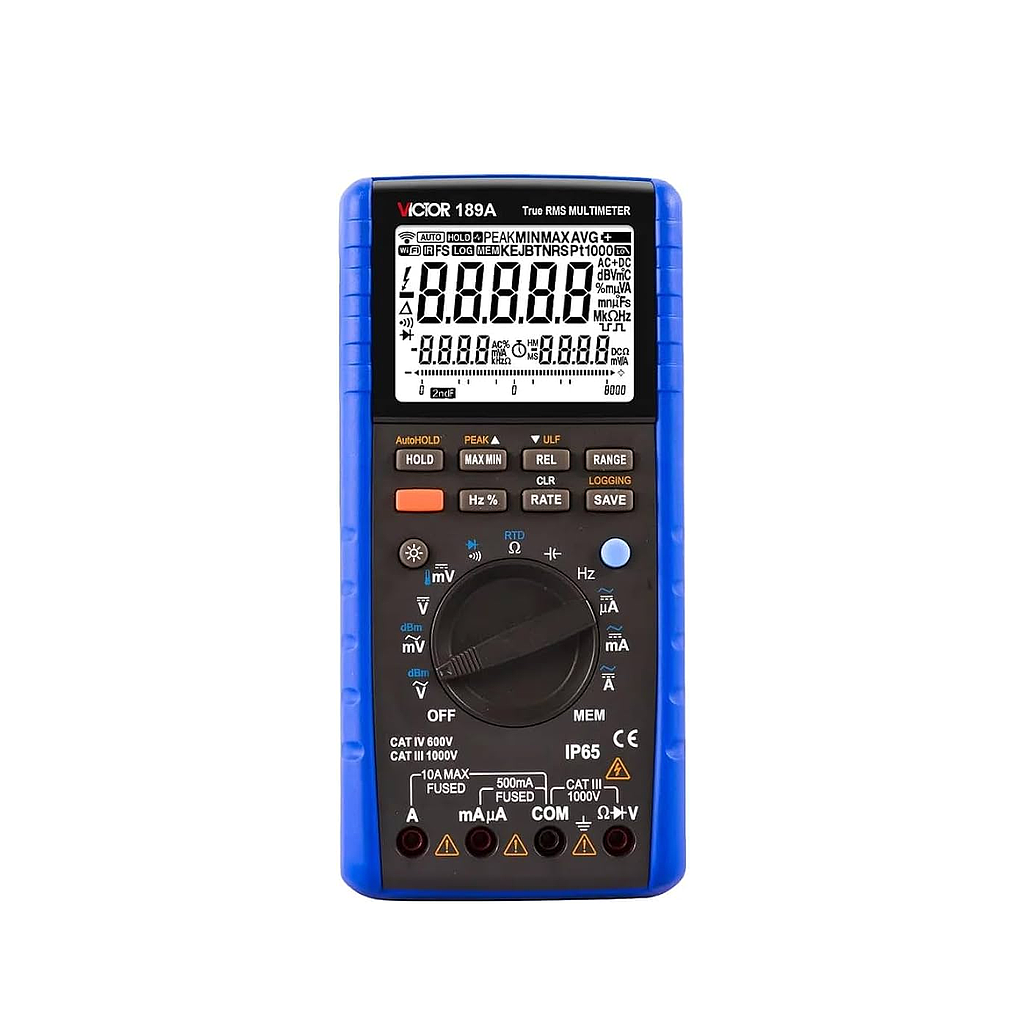

VICTOR 189A Digital Multimeter (1000VDC/AC, 10ADC/AC, TRMS)

DC voltage

Range:50mV/500mV/5V/50V/500V/1000V

Basic accuracy:±(0.025%+5dgt)

AC voltage

Range:50mV/500mV/5V/50V/500V/1000V

Basic accuracy:±(0.7%+30dgt)

DC current

Range:500uA/2000uA/20mA/200mA/2A/10A

Basic accuracy:±(0.15%+10dgt)

AC current

Range:500uA/2000uA/20mA/200mA/2A/10A

Basic accuracy:±(0.8%+30dgt)

Resistance

Range:50Ω/500Ω/5kΩ/50kΩ/500kΩ/5MΩ/50MΩ

Basic accuracy:±(0.05%+5dgt)

Capacitance

Range:10nF/100nF/1000nF/10uF/100uF

Basic accuracy:±(5%+5dgt)

Frequency

Range:10Hz～100KHz

Basic accuracy:±(0.02%+4dgt)

Thermocouple

Range: K indexing: -200.0°C～1360.0°C

Basic accuracy: ±(0.5%+3°C)

RTD

Range: Pt100: -200.0°C～800.0°C

Basic accuracy: ±(0.5%+3°C)
