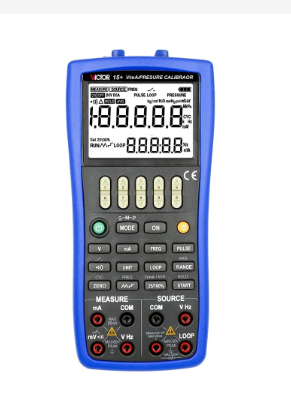

VICTOR 15+ Portable Temperature Calibrators (-10～1100mVDC, -1～11VDC, 0～22mADC)

SOURCE

DC millivolt

Range:-10 ～ 1100mV

Accuracy= ±(% of the set value+% of range):0.02%+0.01%

Resolution:0.01mV

DC voltage

Range:-1 ～ 11V

Accuracy= ±(% of the set value+% of range):0.02%+0.01%

Resolution:0.1mV

DC current

Range: 0 ～ 22mA

Accuracy=±(% of the set value+% of range):0.02%+0.02%

Resolution:1uA

Sink current

Range:0 ～ 22mA

Accuracy±(% of the set value+% of range):0.02%+0.02%

Resolution:1uA

External power supply:5 ～ 28V

Frequency

Range:1Hz ～10KHz

Accuracy:±2words

Resolution:0.01Hz/1Hz/0.1KHz/2KHz

Pulse

Frequency:1Hz ～10KHz

Range:1 ～100000cyc

Accuracy:±2words

Resolution:1cyc

Measure

DC millivolt

Range: -20 ～ 220mV

Accuracy= ±( % of Reading+ % of Range): 0.02%+0.02%

Resolution: 0.01mV

DC voltage

Range: -5 ～ 55V

Accuracy= ±( % of Reading+ % of Range): 0.02%+0.01%

Resolution: 0.1mV/1mV

DC current

Range: -4 ～ 55mA

Accuracy= ±( % of Reading+ % of Range): 0.02%+0.01%

Resolution: 1uA

Frequency

Range: 3 ～50KHz

Accuracy: ±2words

Resolution: 0.01Hz/0.1Hz/1Hz

Switch

Range: CLOSE/OPEN

Threshold: 200 ～300Ω

Pressure

Range: Depends on the pressure module

Accuracy= ±( % of Reading+ % of Range): Depends on the pressure module

Resolution: 5 digit display

Loop power supply

Range: 24V

Accuracy: ±10%

The maximum current: 22mA
