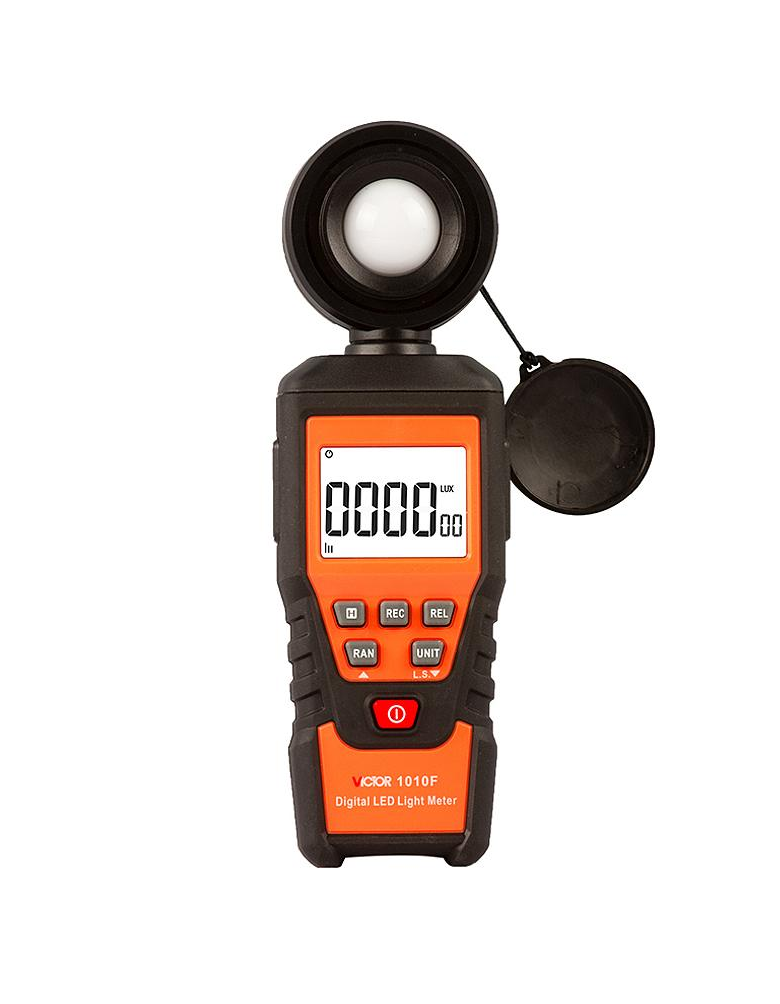

VICTOR 1010F Digital Lux Meter (320 ~ 730nm)

Range

LUX: 1000, 10000, 100000

FC: 100, 1000, 10000

Accuracy

± (3%+5LUX) ordinary incandescent lamp at 28540

± (6%+5LUX) other visible light sources

Cosine angle deviation feature

30°± 2%

60°± 6%

80°± 25%

Resolution

LUX: <1000: 0.1LUx ≥1000: 1LUX

FC:<100: 0.01FC <1000: 0.1FC≥1000: 1FC

Sensor: Silicon photovoltaic cells and filters

Storage conditions: Temperature:10℃~50℃ Humidity: <80%RH

Sampling rate: Approx. 2 times per second

Operating conditions: Temperature: 0~40℃，Humidity:<80%RH Altitude :<2000m

Spectral range: 320~730nm

Automatic shut-down: 10min

Power supply: 3 x 1.5VAAA(LRO3) batteries

 Datasheet
