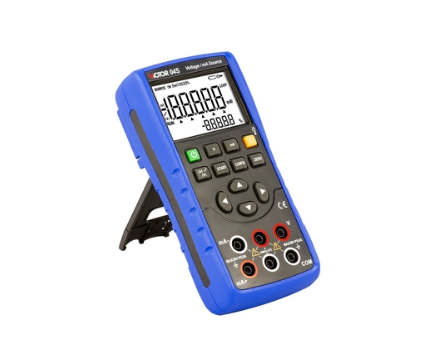

VICTOR 04S Multifunction Process Calibrator (10VDC, 30mADC)

Output functionRangeOutput range Resolution Accuracy Remarks

DCV

10V-1.000V-11.000V0.001V0.05%+2mV Max output current: 5mA
DCI

30mA 0.000mA-30.000mA 0.001mA 0.05%+4uA At 20 mA, the maximum load is 1000Ω

Upon transmitter simulation, the external loop power supply is 5-28V

Standard configuration

Industrial test conductor: 1 pair

User’s Manual: 1 manual

AA alkaline battery: 3 pcs

Graphic carton: 1 item

Fuse: 2 items
