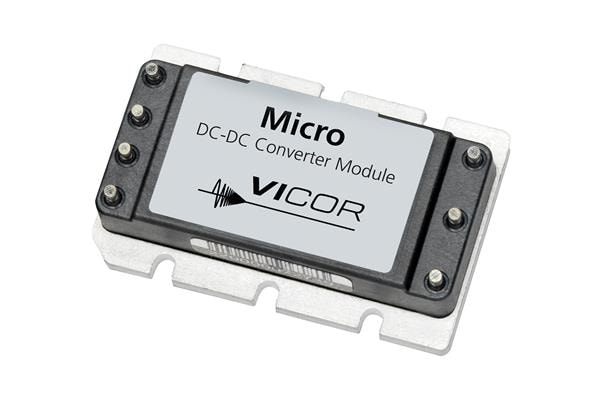

Vicor V48C8C100BG Isolated C 36/75/48 8v/ 12.5A

Width: 36.8 mm (1.449 in)

Height: 12.7 mm (0.5 in)

Length: 57.9 mm (2.28 in)

Industry: Industrial

Application: Aerospace and Defense, ATE, Communications, Distributed Power, Medical

Unit Weight: 59.300 g

Output Power: 100 W

REACH - SVHC: Details

Input Voltage: 36 V to 75 V

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 36 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 12.5 A

Output Voltage-Channel 1: 8 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 20 C
