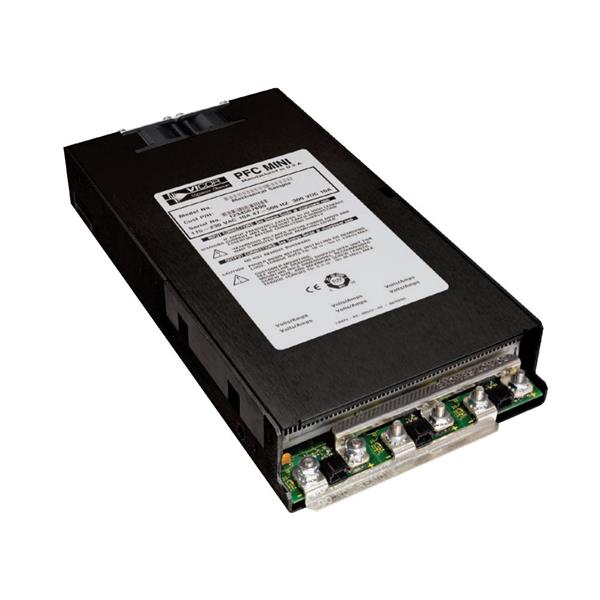

Vicor PM4-22-4109-2 AC-DC Switcher PFC Mini

Width: 152.4 mm (6 in)

Height: 43.6 mm (1.717 in)

Length: 309.9 mm (12.201 in)

Industry: Industrial

Approvals: CE, cTUVus, EN55022, EN61000, FCC

Compliance: CE, cTUVus, EN 55022, EN 61000, FCC

Unit Weight: 2.592 kg

Output Power: 800 W, 1.5 kW

REACH - SVHC: Details

Input Voltage: 100 VAC to 380 VAC

Mounting Style: Chassis

Load Regulation: Regulated

Isolation Voltage: 4.242 kV

Number of Outputs: 4 Output

Open Frame/Enclosed: Enclosed

Operating Temperature Range: - 20 C to + 45 C

Maximum Operating Temperature: + 45 C

Minimum Operating Temperature: - 20 C
