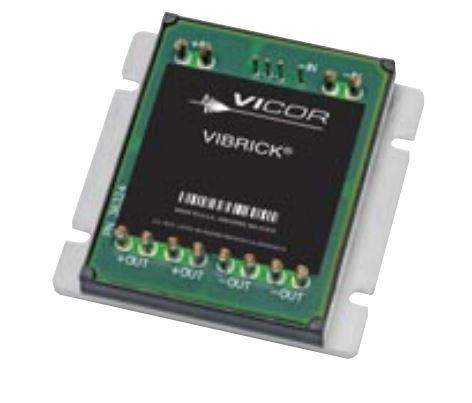

Vicor PF175B480T033FP-00 AC-DC Power Modules PFC VIBRICK T 48330W

Width: 48.6 mm

Height: 9.5 mm

Length: 48.7 mm

Industry: Industrial

Approvals: CE, cTUVus, cURus, EN 60950-1, IEC 60950-1

Compliance: CE, cTUVus, cURus, EN 60950-1, IEC 60950-1

Efficiency: 93 %

Unit Weight: 57.531 g

Output Power: 330 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Through Hole

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC/4.242 kV

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 6.9 A

Output Voltage-Channel 1: 48 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
