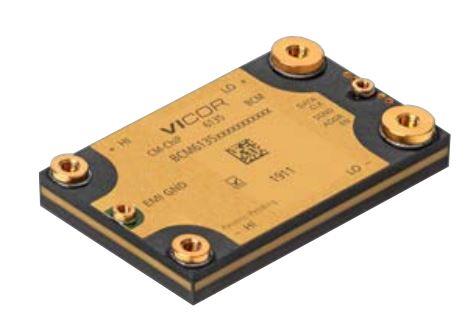

Vicor BCM6135CD1E5165T00 Isolated DC DC Converter 400V input 1/8 65A output

Width: 35.35 mm

Height: 7.42 mm

Length: 61.33 mm

Industry: Industrial

Dimensions: 61.33 mm x 35.35 mm x 7.42 mm

Output Power: 62 W

REACH - SVHC: Details

Input Voltage: +/- 260 V to +/- 410 V

Mounting Style: Chassis

Isolation Voltage: 4.242 kV

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 410 V

Input Voltage - Min: 260 V

Input Voltage, Nominal: 384 V

Output Current-Channel 1: 65 A

Output Voltage-Channel 1: 48 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
