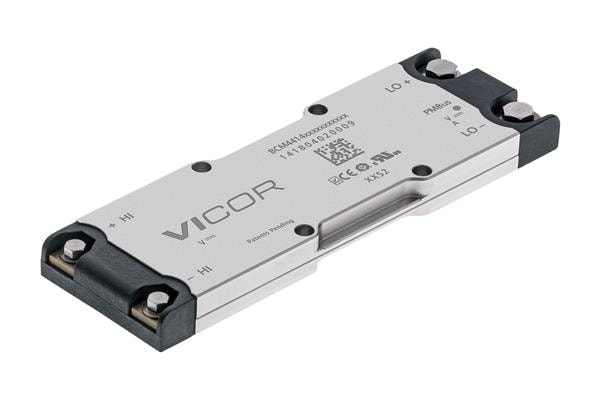

Vicor BCM4414VG0F4440M02 Isolated 400-700Vin 40A MGrade Chassis

Width: 35.5 mm

Height: 9.4 mm

Length: 111 mm

Industry: Industrial

Adjust Type: Fixed

Application: Automated Test Equipment, Industrial Systems, Transportation

Unit Weight: 145 g

Output Power: 1.5 kW

REACH - SVHC: Details

Input Voltage: 400 V to 700 V

Mounting Style: Chassis

Isolation Voltage: 4.3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 700 V

Input Voltage - Min: 400 V

Input Voltage, Nominal: 544 V

Output Current-Channel 1: 40 A

Output Voltage-Channel 1: 34 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 55 C
