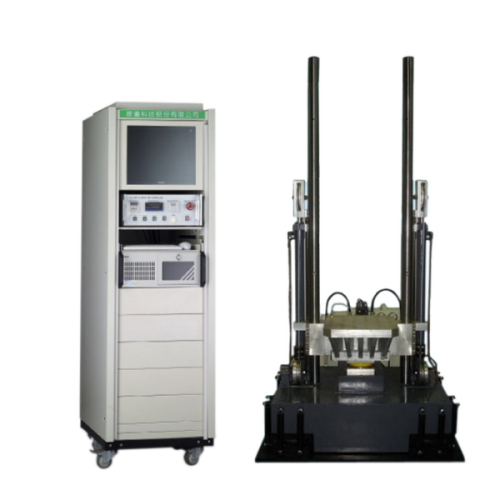

Vibsource SHOCK-100 Shock Tester (100kg)

Max.payload (kg): 100

Table size (mm): 500x500

Shock waveform: Half-sine

Final-peak saw-tooth

Trapezoidal

Peak acceleration (m/s²): 100~11000

150~1000

300~1000

Pulse duration (ms): 40~1

18~6

12~6

Shock tester

- Dimension WxDxH (mm): 1300x1000x2600

- Weight (kg): 2600

Hydraulic Pump

- Dimension WxDxH (mm): 580x410x730

- Weight (kg): 35

Power source: 220/380V 50/60Hz 2.2kW
