Viavi G700050370 RF directional horn antenna kit (650 – 6000 MHz)
ManufacturerViavi(View more products from this manufacturer)
ModelG700050370
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Mechanical Data:
Dimension: 93.73 × 36.83 × 27.94 mm (3.69 × 1.45 × 1.10 in)
Connector: K jack (female)
Electrical Data:
Frequency Range: 26.5 to 40 GHz
Polarization: Linear
Gain: 20 dB nominal
3 dB Beam Width: 16.7° (E-Plane) / 18.3° (H-Plane)
VSWR: ≤ 1.4:1
Impedance: 50 Ω nominal

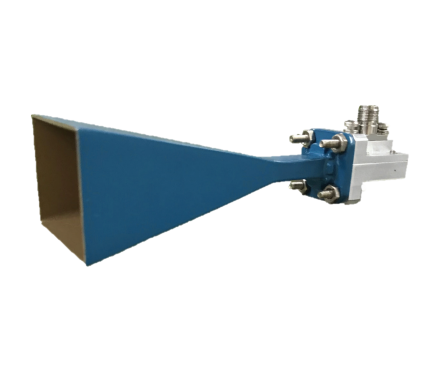

Description: RF directional horn antenna kit that includes a 26.5 to 40 GHz horn antenna, a tripod handle, a 40 GHz cable, and a hard carrying case.
