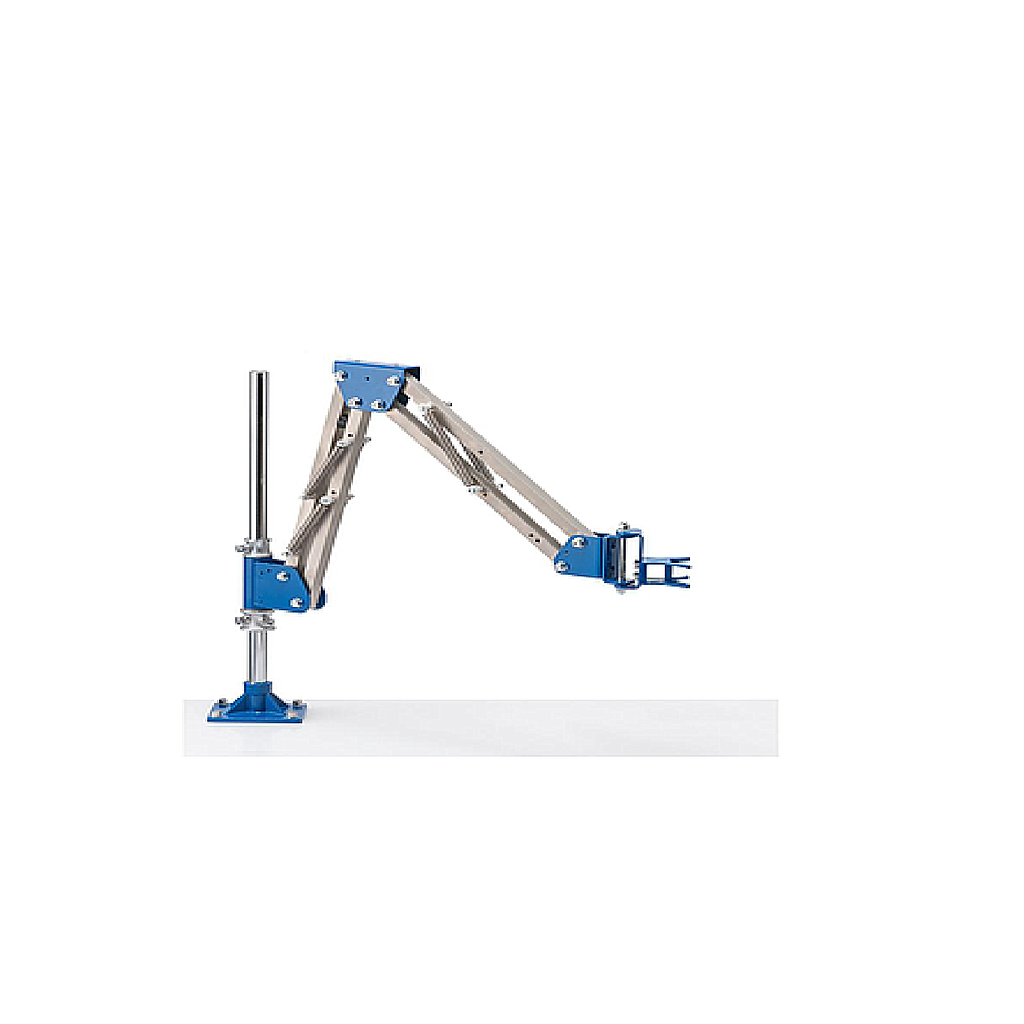

Vessel HFS1-300-1DR Hand Free Arm

Maximum reaction force (N•m): 4.5

Recommend load range (kg): 0.8～1.2

Mounted tool outer diameter (mm): 35～45

Arm length(mm): 300+300

Movable range (mm): R450～700

Weight (kg): 2.7 (excluding accessories)

Accessories: Replacement kit, Rubber sheet, Hose band

Operating temperature/humidity: 0～40℃ / 10～80%RH

Installation location: Indoor

Material: Steel (main pillar, holder, bracket),

Aluminum (arm)

Applicable models: VE-3000, VE-4000(P, AC, PAC),VE-4500(P, AC, PAC),VE-5000(P, SOP), VE-6000(P, SOP)
