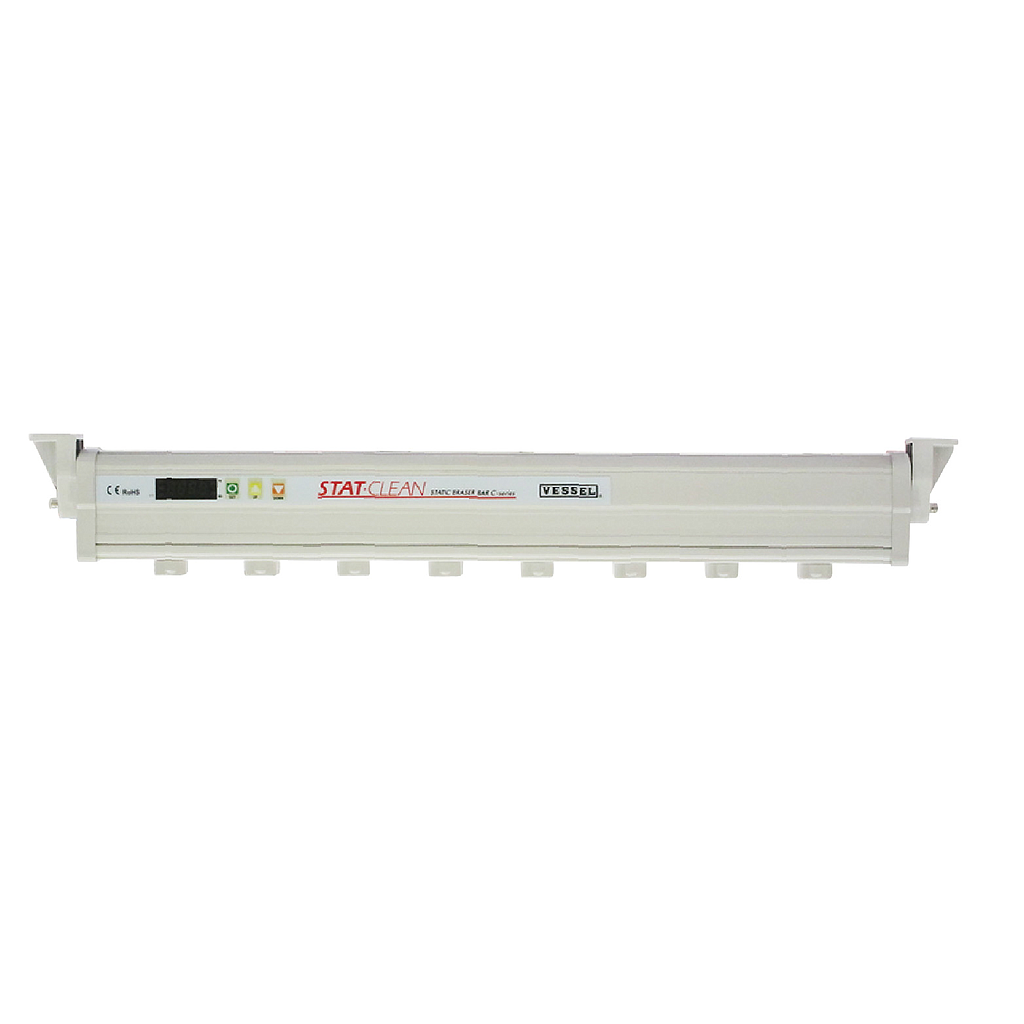

Vessel C-60 AC Pulse Ionizing Clean Bar

Body Size: 602 x 90 x 46 mm

Weight: 1080 g

Applied voltage: AC8 to 12.5kV(p-p)

Power supply: DC24V +/- 5%

Current consumption: max. 600 mA

Discharge needle useful length: 420 mm

Electrode needles: 8 pcs

Ionizing method : Pluse AC corona discharge

Dacay time (sec.) : Within 0.8 sec

Frequency : 13steps(0.1 to 50Hz)

Pulse ratio : +:40 to 70%, -:60 to 30%

Voltage level : +/- 10steps each

Item PKG (mm): 560 x 150 x 125

Contents

* Power cable (10m)

* End blackets (included with device)

* Interface cable (10m)

Catalogue

Manual

Leaflet
