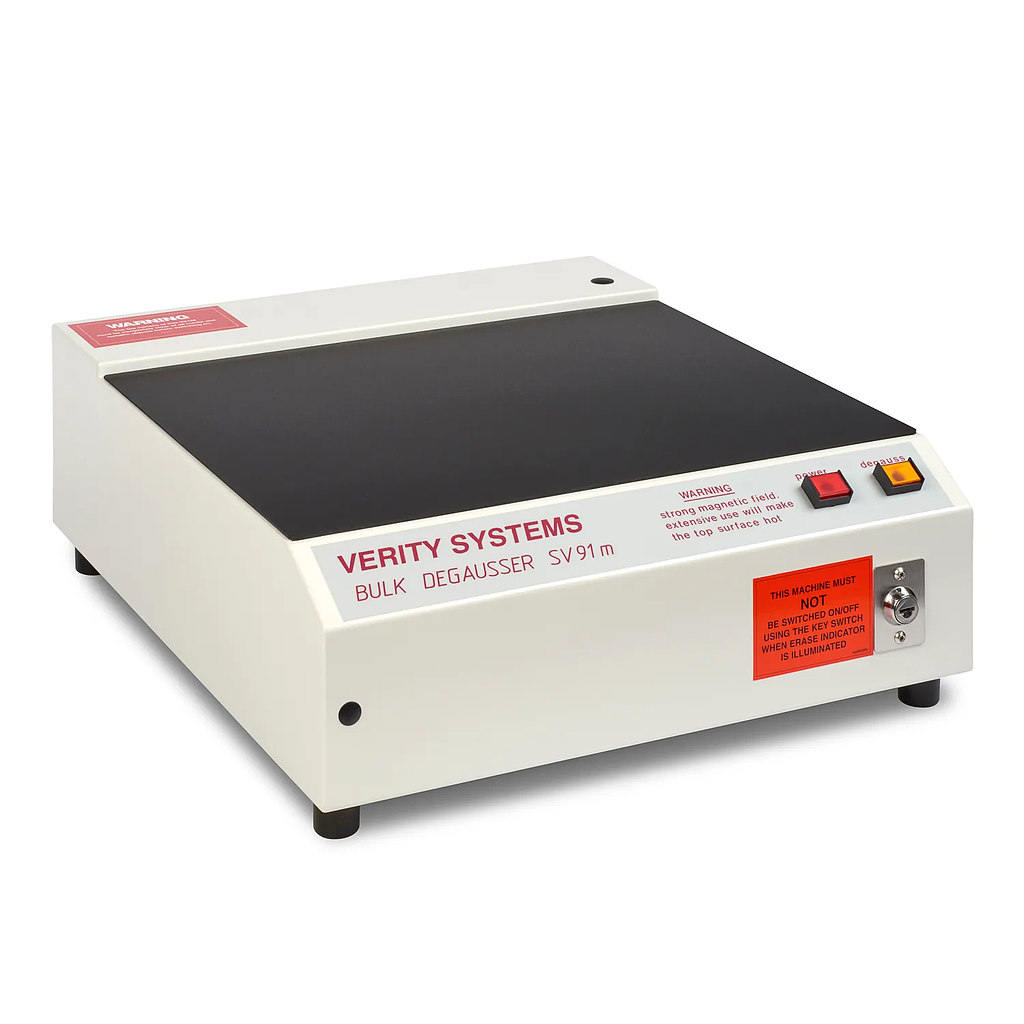

Verity Systems SV91M Manual hard drive and tape degausser (7000 Gauss)

Media Handling:

Standard PC, Laptop and Server 3.5”, 2.5” & 1.8” Hard Drives.

Longitudinal & perpendicular recording up to 2TB.

All drive interfaces; IDE, SATA, SAS and Fibre Channel.

All backup tapes including; DLT,2,3,4,5,6 & SDLT, LTO1,2,3,4,5,6,7 & 8

3480/3490/3490e,3590,9840,T9940 & T10000 tape.

Ultrium & Redwood SD-3 tape and cartridges.

Mammoth 1 & 2, 8mm, AIT1 & 2, M2 tapes, DDS 1,2,3,4 & 5, DD-2

Other Media Erased: ½” Computer Tape, Diskettes (Single/Boxed), DC 600, 2000, TK50, 70,  85, 4mm, 8mm, Exabyte, Travan, DAT, ZIP Disk, HD Cam, HD Cam SR, VHS, S-VHS, U-Matic, Betacam, Digital Betacam SP, MII, D1,2,3 & 5, DVC Pro, Hi-8, Mini DV, 1” Tape on Reels

Power Supply: 208-220V 60Hz, 220-240V 50Hz

Current Rating: 60Hz 12 Amps, 50Hz 10 Amps typical (Please specify Voltage and Frequency when ordering)

Degaussing Force: 7000 Gauss

Duty Cycle: 20%

Erasure Depth: -75dB on 1500 OE Tape, -90dB on 750 OE Tape

Dimensions (WxHxD): 16.5” x 6” x 19” (42cm x 15cm x 48cm)

Unit Weight: 57lbs (26kg)

Packed Dimensions (WxHxD): 20.8” x 25.5” x 10.6” (53cm x 65cm x 27cm)

Packed Weight: 62lbs (28kg)

Throughput: 20 Hard drives or 40 tapes per hour typical

Controls: On/Off, Security Key

Indicators: On/Off Erase Field, Coil Power Supply Warning Light

Datasheet
