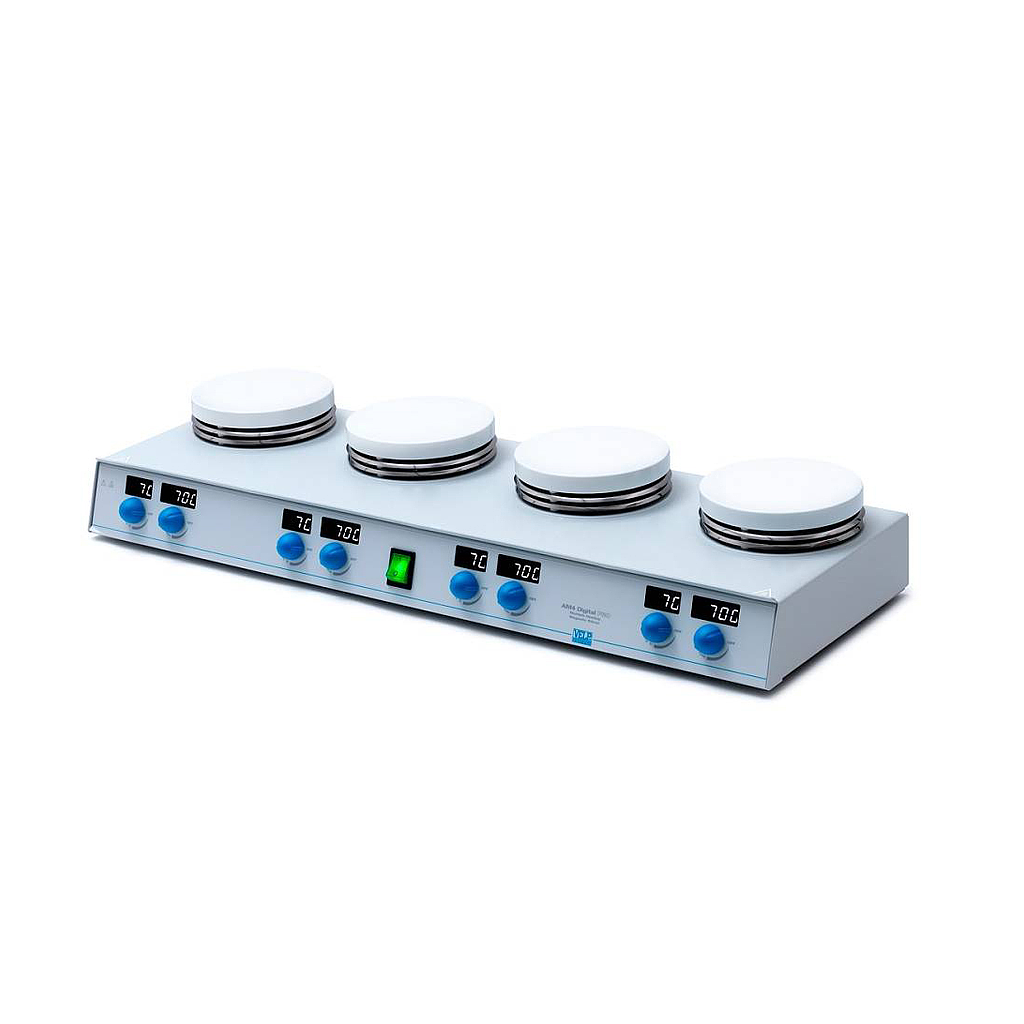

VELP AM4 Digital PRO Digital Multi-position Heating Magnetic Stirrer (1500 rpm)

Structure: Epoxy painted aluminium structure

Heating plate: CeralTop™ Aluminum alloy with ceramic coating

Heating plates diameter: 135 mm

Stirring volume (H2O): Up to 20L x4

Digital display: 4 for speed, 4 for temperature

Heat control accuracy with pt100: ± 1.0°C

Heat control accuracy with VTF: ± 0.5°C

Pt100 connection: Yes x4

Vertex connection: Yes x4

Electronic speed regulation: 50 to 1500 rpm

Counter-reaction: SpeedServo™

Electronic temperature regulation: From room temperature to 370°C

Temperature limit: Yes (50 -370 °C

Hot plate warning: Whenever the plate temperature is above 50 °C

Stirring system: High-power driving magnet type ''PCM'' operated by a mono-phase motor for

continuous operation

Power: 630 W x4 (2520 W)

Weight: 9.0 Kg - 19.8 lb

Dimensions (wxhxd): 715x115x246 mm - 28.1x4.5x9.7 in

With temperature probe, Rod and clamp
