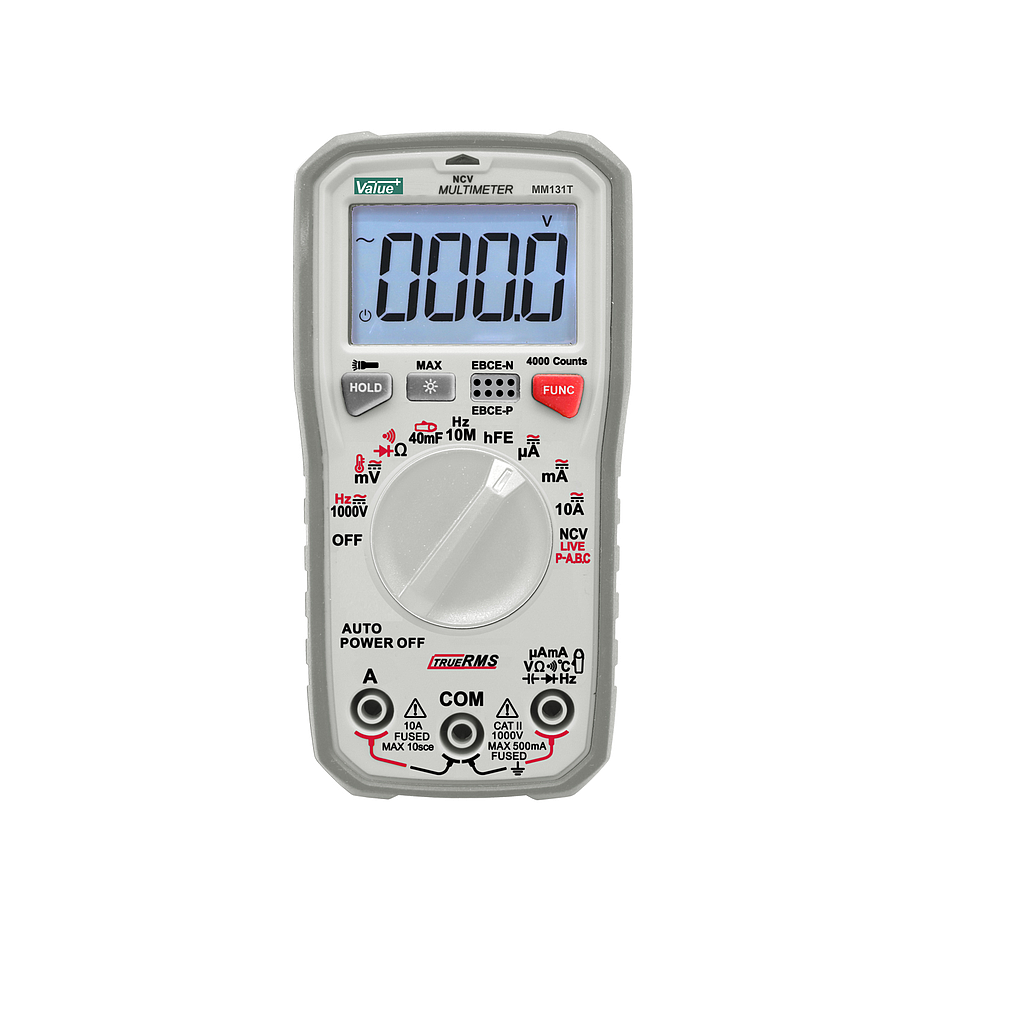

Value+ MM131T Digital Multimeter (1000V, 10MHz, 10A, 40mF, -40~1000°C)

Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

DC Voltage:

200mV/2V/20V/200V/600V: -

200mV/2V/20V/300V/600V: -

400mV/4V/40V/400V/600V: -

400mV/4V/40V/400V/1000V: ±(0.5%+3)

AC Voltage:

2V/20V/200V/600V: -

2V/20V/300V/600V: -

4V/40V/400V/600V: -

4V/40V/400V/750V:

4V/40V/400V/1000V: ±(0.8%+3)

ACV/Bandwidth:

400Hz: -

1kHz: Yes

DC Current:

2mA/20mA/200mA/10A: -

400μA/40mA/400mA/10A: ±(1%+5)

400μA/4mA/40mA/400mA/10A: -

AC Current:

2mA/20mA/200mA/10A: -

400μA/40mA/400mA/10A: ±(1%+5)

400μA/4mA/40mA/400mA/10A: -

AC/DC w/ Current Clamp 0.1A~600A: ±(3%+5)

Resistance:

200Ω/2kΩ/20kΩ/200kΩ/20MΩ: -

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ: ±(0.8%+3)

Temperature:

-40~1000°C: ±(1.5%+4)

-58~1832°F: ±(2%+4)

Frequency 10Hz/100Hz/1kHz/10kHz/40kHz: -

10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz: ±(0.5%+5)

Capacitance 40nF/400nF/4mF/40mF/400mF/4mF/40mF: ±(4%+5)

Transistor hFE (NPN/PNP) 0~1000b: Yes

Live: Yes

NCV: Yes

Three Phase Squence: Yes

Semi-auto Ranging: -

Auto Ranging: Yes

Battery Test 1.5V/9V: -

Diode: Yes

Continuity Buzzer: Yes

Relative Mode: -

Max: Yes

True RMS: Yes

Data Hold: Yes

Auto Power Off: Yes

Display Backlight: Yes

Flashlight: Yes

Max Display : 4000

Power By : 1.5 (AA) x2
