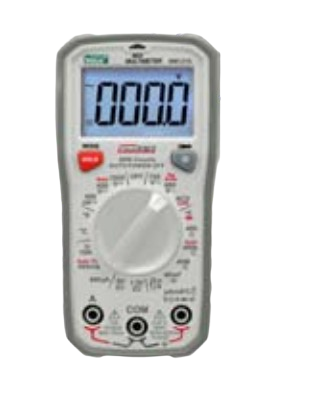

Value+ MM131K Digital Multimeter (1000VDC, 750VAC, 10A, 40MΩ, -40~1000°C, 40kHz, 40mF)

DC Voltage:

200mV/2V/20V/200V/600V: -

200mV/2V/20V/300V/600V: -

400mV/4V/40V/400V/600V: -

400mV/4V/40V/400V/1000V: ±(0.5%+3)

AC Voltage:

2V/20V/200V/600V: -

2V/20V/300V/600V: -

4V/40V/400V/600V: -

4V/40V/400V/750V: ±(0.8%+3)

4V/40V/400V/1000V:

ACV/Bandwidth:

400Hz: Yes

1kHz: -

DC Current:

2mA/20mA/200mA/10A: -

400μA/40mA/400mA/10A: -

400μA/4mA/40mA/400mA/10A: ±(1%+5)

AC Current:

2mA/20mA/200mA/10A: -

400μA/40mA/400mA/10A: -

400μA/4mA/40mA/400mA/10A: ±(1%+5)

AC/DC w/ Current Clamp 0.1A~600A: ±(3%+5)

Resistance:

200Ω/2kΩ/20kΩ/200kΩ/20MΩ: -

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ: ±(1%+5)

Temperature:

-40~1000°C: ±(1.5%+4)

-58~1832°F: ±(2%+4)

Frequency 10Hz/100Hz/1kHz/10kHz/40kHz: ±(0.5%+5)

10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz: -

Capacitance 40nF/400nF/4mF/40mF/400mF/4mF/40mF: ±(4%+5)

Transistor hFE (NPN/PNP) 0~1000b:

Live: Yes

NCV: Yes

Three Phase Squence: -

Semi-auto Ranging: Yes

Auto Ranging: -

Battery Test 1.5V/9V: ±(2.5%+5)

Diode: Yes

Continuity Buzzer: Yes

Relative Mode: -

Max: -

True RMS: Yes

Data Hold: Yes

Auto Power Off: Yes

Display Backlight: Yes

Flashlight: Yes

Max Display : 4000

Power By : 1.5 (AA) x2
