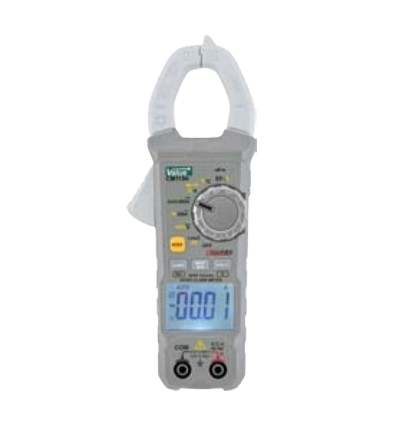

Value+ CM113H Digital DC/AC Power Clamp Meter (600A, 1700VDC, 1000VAC, 60kHz, -50~1000°C)

DC Current 40A/400A: -

60A/600A: ±(2%+5)

AC Current 40A/400A: -

60A/600A: ±(2%+5)

DC Voltage 600V: -

600V/1700V: ±(2%+10)

AC Voltage 600V: -

600V/1000V: ±(2%+10)

LowZ AC Voltage 600V: -

ACA/Bandwidth 60Hz: Yes

ACV/Bandwidth 400Hz: -

ACV/Bandwidth 1kHz: Yes

Variable Frequency (ACV) 100~600V/400Hz: ±(4%+5)

Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ: -

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ: ±(1%+5)

Temperature:

-50~1000°C: ±(1.5%+4)

-58~1832°F: ±(2%+5)

Frequency 1Hz/10Hz/100Hz/1kHz/10kHz/40kHz: -

1Hz/10Hz/100Hz/1kHz/10kHz/60kHz: ±(0.5%+5)

Capacitance 40nF/400nF/4mF/40mF/400mF/4mF: -

60nF/600nF/6mF/60mF/600mF/6mF/60mF: ±(4%+5)

Live: Yes

NCV: Yes

Auto Ranging: Yes

Diode: Yes

Continuity Buzzer: Yes

Relative Mode: Yes

True RMS: Yes

Max / Min: Yes

Data Hold: Yes

Auto Power Off: Yes

Display Backlight: Yes

Flashlight: Yes

Max Display : 6000

Jaw Opening : Φ28mm

Power By: 1.5V (AAA) x2
