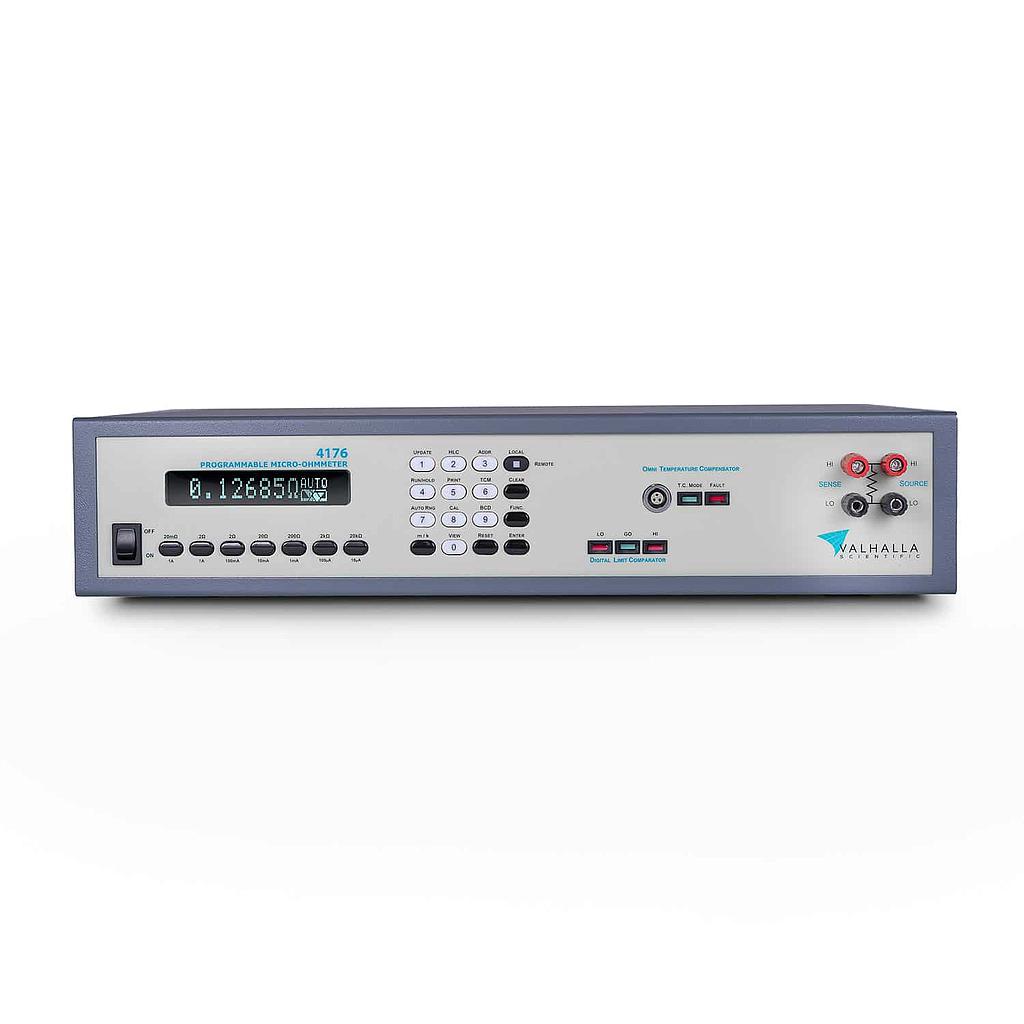

Valhalla Scientific 4176 Micro-Ohmmeter (20mΩ ~20kΩ)

General Specifications

Display Type: 5 digit VFD

Overload Indication: Flashes OVERLOAD

Conversion Rate: 45 readings per second

Terminal Configuration: 4-Wire Kelvin

Current Source Compl. Voltage: 5V Minimum

Test Current Polarity: Positive (flows High to Low)

Power Requirements: 115VAC or 230VAC ±10%

Temperature

Operating Temp. Range: 0°C~50°C

Storage Temp. Range: 40°C~85°C

Humidity: 80% RH max @ 40°C (non-condensing)

Physical Specifications

Width: 17”/43cm

Depth: 11.5”/29.5cm

Height: 4”/10cm

Weight: 13lbs/5.9 kg

Accessories:

Omni Compensator (Temperature Sensor)

19” Rack Mount Adaptor

Options:

USB Interface

Binary Coded Decimal Interface
