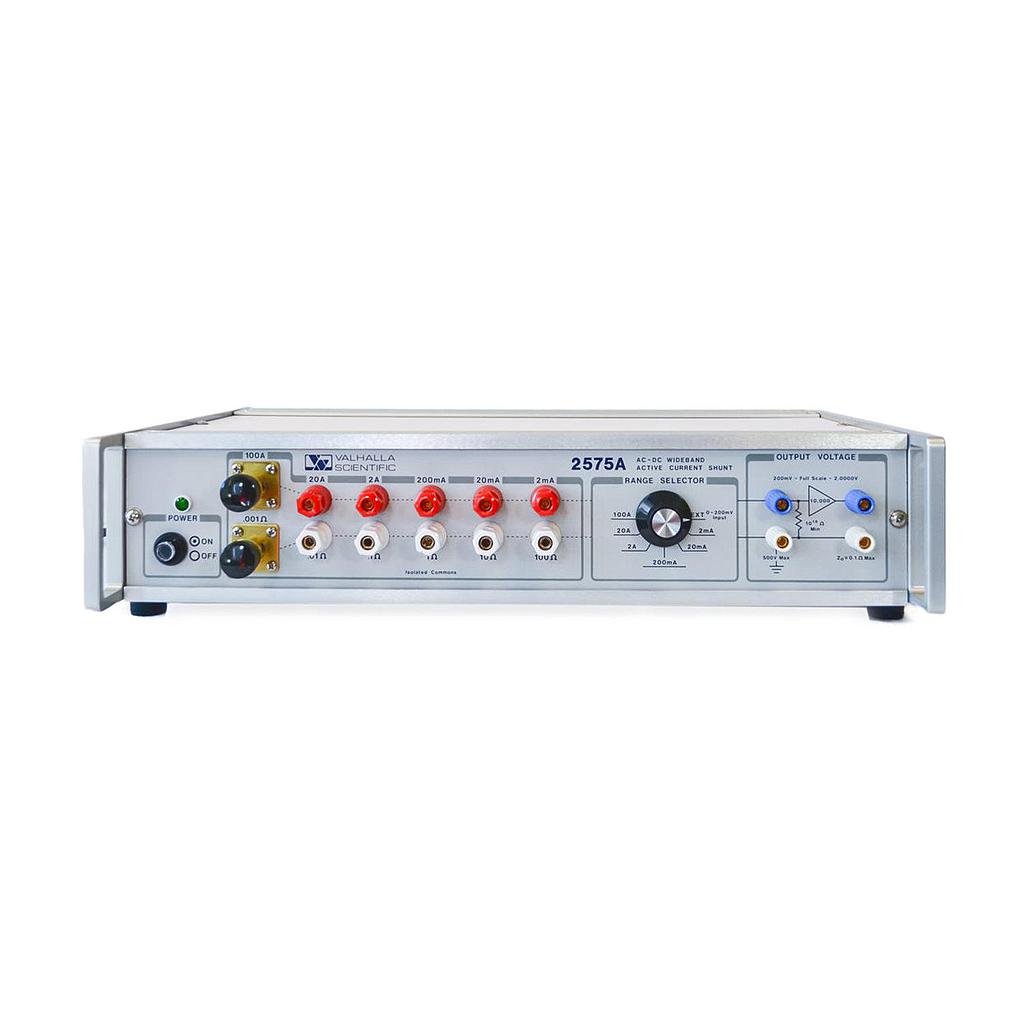

Valhalla Scientific 2575A Current Calibrator (2mA~100A)

Amplifier Characteristics

Amplifier Gain: 10.000

Gain Accuracy: ±0.01% ±10µV RTI @ DC

Frequency Response: ± 0.05% to 10kHz

Input Resistance: >1010Ω

Output Resistance: <0.1Ω

Power Requirements: 110VAC/240VAC 50 to 60Hz 12 Watts

Switching Power Supply

Temperature

Operating Temp. Range: 0°C~50°C

Storage Temp. Range: -30°C~70°C

Humidity: 70% RH max @ 40°C (non-condensing)

Physical Specifications

Width: 17”/43.2cm

Depth: 10”/25cm

Height: 3.5”/9cm

Weight: 8lbs/3.6kg net

Accessories:

100 Amp Cable Set (Spade Lugs)

Dual Banana to Dual Banana lead set

19” Rack Mount Adaptor
