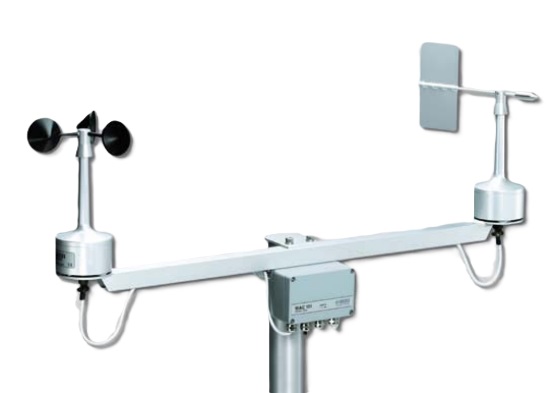

VAISALA WAA151 Anemometer (0.4 … 75 m/s (0.9 … 168 mph))

- Sensor/Transducer type: Cup anemometer/opto-chopper

- Observation range: 0.4 … 75 m/s (0.9 … 168 mph)

- Starting threshold: < 0.5 m/s (1.1 mph)

- Distance constant: 4.0 m (13 ft 1 in)

- Electrical connections: MIL‑C‑26482 type, 6‑wire cable

- Cabling: 6‑wire cable through cross-arm

- Operating temperature: −50 … +55 °C (−58 … +131 °F)

- Operating humidity: 0 … 100 %RH

- IP rating: IP65

- Dimensions (H × Ø): 240 × 90 mm (9.45 × 3.54 in)

- Swept radius of cup wheel: 91 mm (3.58 in)

- Weight: 570 g (1.26 lb)

Datasheet
