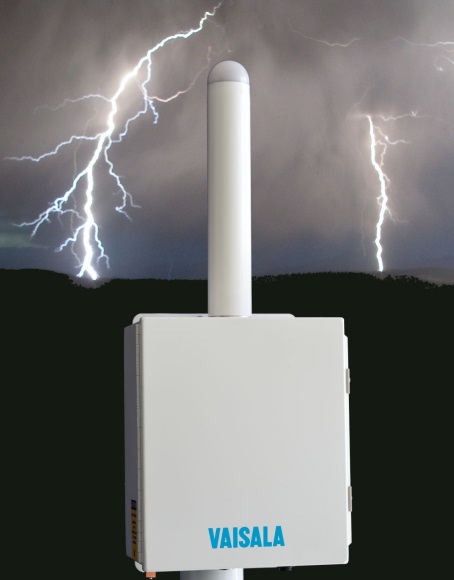

VAISALA TSS928 Thunderstorm Local Lightning Sensor (30 nmi (56km))

Detection range: 30 nmi (56 km) radius from sensor location

Range resolution: Three range groups:

• 0 … 5 nmi (0 … 9 km)

• 5 … 10 nmi (9 … 19 km)

• 10 … 30 nmi (19 … 56 km)

Range resolution uncertainty:

0 … 10 nmi (0 … 19 km): less than 3 nmi (5.6 km)

10 … 30 nmi (19 … 56 km): less than 6 nmi (11.1 km)

DC power: 11 … 32 V DC

Power consumption: Nominal 6 W

Height: Max. 3 m (9 ft 10 in) recommended

Weight (sensor only): 9.9 kg (22 lb)
