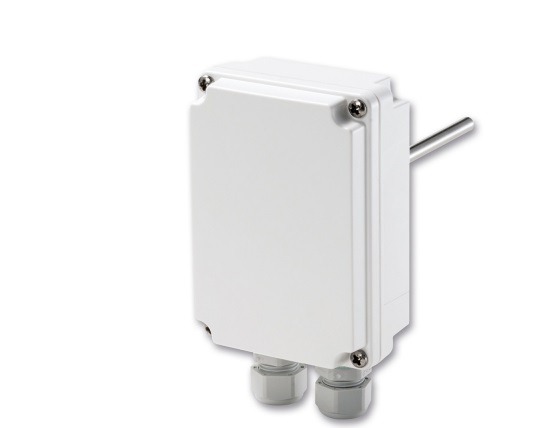

VAISALA TMI110 Temperature Transmitter (−40 ~ +120 °C (−40 ~+248 °F))

- Sensor: HUMICAP

- Temperature:

Measurement range: −40 … +120 °C (−40 … +248 °F)

Accuracy at +20 °C (+68 °F): ±0.1 °C (±0.18 °F)

Temperature dependence: ±0.01 °C/°C

- IP rating: IP65

- UL 50E (NEMA) rating: Type 4

- Outputs: 4–20 mA, loop powered

- Loop resistance: 0–600 Ω

- Supply voltage:

20–28 V DC at 600 Ω load

10–28 V DC at 0 Ω load

- Probe material: Stainless steel

- Probe diameter: 6 mm (0.24 in)
