VAISALA SHM40 Structural Humidity Measurement Kit (−40 … +80 °C)

*HMP40S

- Relative Humidity:

Measurement range: 0 … 100 %RH

Humidity sensor: HUMICAP 180R

Stability: ±2 %RH over 2 years

- Temperature:

Measurement range: −40 … +80 °C

Temperature sensor: Pt1000 RTD Class F0.1 IEC 60751

Probe weight with standard cable: 31 g

Probe housing material: Stainless steel

Probe housing IP rating: IP65

Borehole diameter needed: 16 mm

*HM40

Indicator with adapter: 240 g

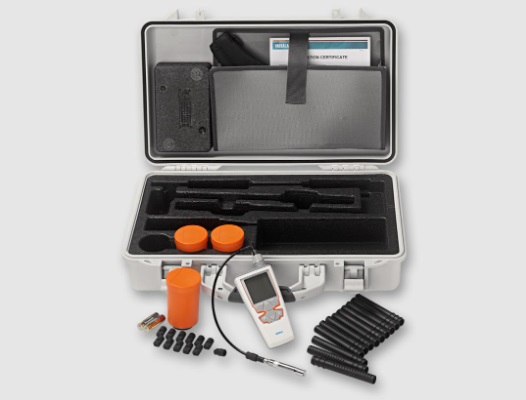

SHM40 case with standard content: 3.7 kg

Indicator materials: PC/ABS blend, acrylic display lens

Indicator adapter materials: Nickel plated brass and plastic overmolding

Indicator housing IP rating: IP54

Mechanical drop endurance: 1.0 m without the probe

Power-up time: < 3s
