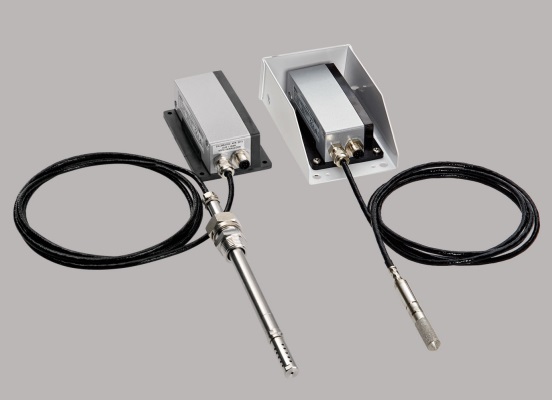

VAISALA MMT310 Moisture and Temperature Transmitter for Oil (-40 ... +180 °C (-40 ... +356 °F))

- Sensor: HUMICAP 180L2

- Water Activity:

Measurement range aw (%RS): 0 … 1 (0 … 100 %)

Response time (90 %) at +20 °C in still oil (with stainless steel filter): 10 min

- Temperature:

Measurement range: -40 ... +180 °C (-40 ... +356 °F)

Typical accuracy at +20°C (68°F)L: ±0.2 °C (±0.36 °F)

- IP rating: IP66

- Two analog outputs, selectable and scalable:

0 ... 20 mA or 4 ... 20 mA

0 … 5 V or 0 … 10 V

1 … 5 V available through scaling

- Typical accuracy of analog output at +20°C: ±0.05 % full scale

- Operating voltage: 10 ... 35 VDC

Datasheet
