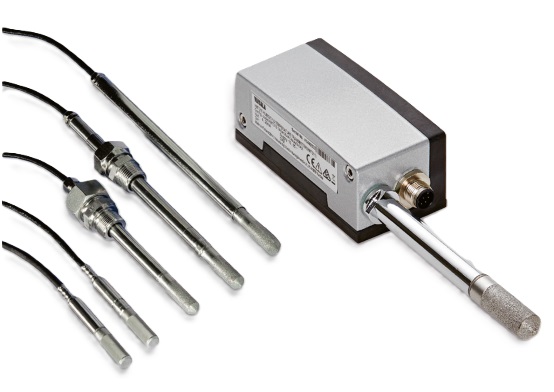

VAISALA HMT314 Humidity and Temperature Transmitter (−70 … +180 °C (−94 … +356 °F), 0 … 100 bar)

Temperature: −70 … +180 °C (−94 … +356 °F)

- Operating Pressure: 0… 100 bar

- Typical accuracy at +20 °C (+68 °F): ±0.2 °C (±0.36 °F)

- Temperature sensor: Pt100 RTD Class F0.1 IEC 60751

- Relative Humidity:

Measurement range: 0 … 100 %RH

- Two analog outputs, selectable and scalable:

0 … 20 mA or 4 … 20 mA

0 … 5 V or 0 … 10 V

1 … 5 V available through scaling

- Typical accuracy of analog output at +20 °C: ±0.05 % full scale

- Operating voltage: 10 … 35 VDC

- IP rating: IP66

- Probe cable length: 2, 5, or 10 m (6 ft 7 in, 16 ft 5 in, 32 ft 10 in)

Datasheet
