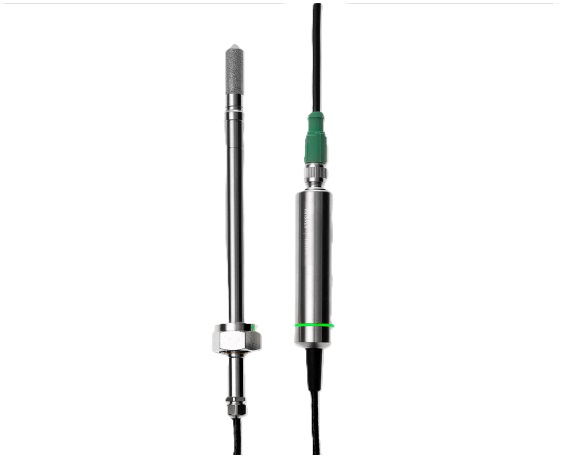

VAISALA HMP8 Relative Humidity and Temperature Probe (−70 … +180 °C (−94 … +356 °F),15 … 30 V DC)

- Relative humidity:

Measurement range: 0 … 100 %RH

Accuracy at +23 °C (+73.4 °F): ±0.8 %RH (0 … 90 %RH)

- Temperature:

Measurement range: −70 … +180 °C (−94 … +356 °F)

Accuracy at +23 °C (+73.4 °F): ±0.1 °C (±0.18 °F)

- Operating voltage: 15 … 30 V DC

- Current consumption: 10 mA typical, 500 mA max.

- Digital output: RS-485, non-isolated

- Protocols: Modbus RTU

- Connector: M12 5-pin A-coded male

- Probe fitting: ISO1/2” and NPT1/2” fittings included

- Weight: 512 g (18.1 oz)

- Probe cable length: 2 m (6.56 ft)
