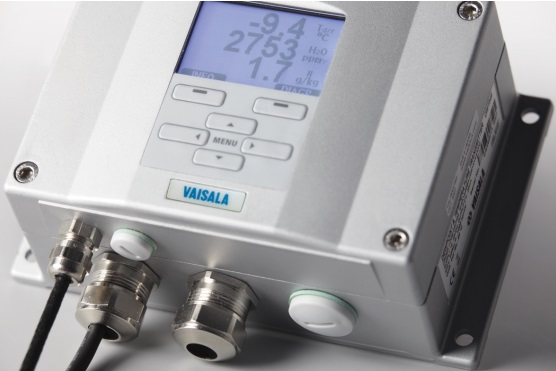

VAISALA DMT344 Dew Point and Temperature Transmitter (0 ... 50 bar/0 ... 725 psia)

- Pressure range: 0 ... 50 bar/0 ... 725 psia

- Mechanical durability: Up to 100 bar/1450 psia

- Probe diameter: 12 mm/0.5 in

- Installation:

Fitting body M22 x 1.5

Fitting body NPT 1/2 in

- Sensor: DRYCAP

- Dew point:

Measurement range: -70 ... +80 °C (-94 ... +176 °F) Td

- Temperature:

Measurement range: 0 ... +80 °C (+32 ... +176 °F)

Accuracy: ±0.2 °C at room temperature

- Relative humidity:

Measurement range: 0 ... 70 %RH

Accuracy (RH <10 %RH, at + 20 °C): ±0.004 %RH + 20% of reading

- Operating voltage: 10 ... 35 V DC, 24 V AC ±20 %

- with optional power supply module: 100 ... 240 V AC 50/60 Hz

- Probe cable diameter: 5.5 mm (0.22 in)

- Housing classification:

IP66

IP65 with local display

- Weight (depending on selected probe, cable, and modules): 1.0 ... 3.0 kg (2.2 ... 6.6 lb)

Datasheet
