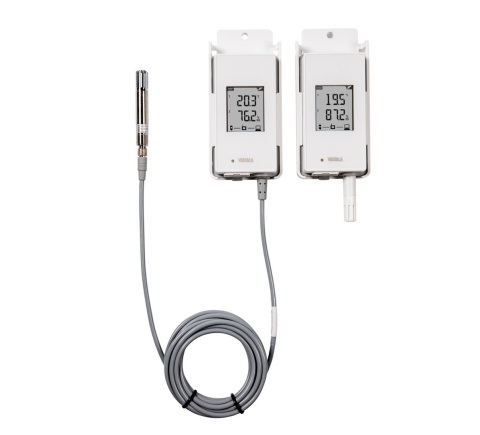

VAISALA CWL100 Cloud Wireless Data Logger (868 MHz and 915 MHz)

Networking standards: LoRa

Modulation: LoRa chirp spread spectrum modulation

Output power: 13 dBm (20 mW)

Antenna: Internal

Typical range (indoors): At least 100 m (approx. 330 ft)

Range with line-of-sight: Over 500 m (1640 ft)

Frequency bands: 868 MHz and 915 MHz

Sample capacity: 30 days (43200 samples per channel)

Operation time at 20 °C (68 °F) without external power supply: 18 months

Housing color: White

Mounting methods: Screws, tie-wrap, hook, or magnetic mounting bracket (optional accessory)

Probe interface: 4-pin female M8 connector

Service port: USB 2.0 with micro-USB connector

IP rating: IP54
