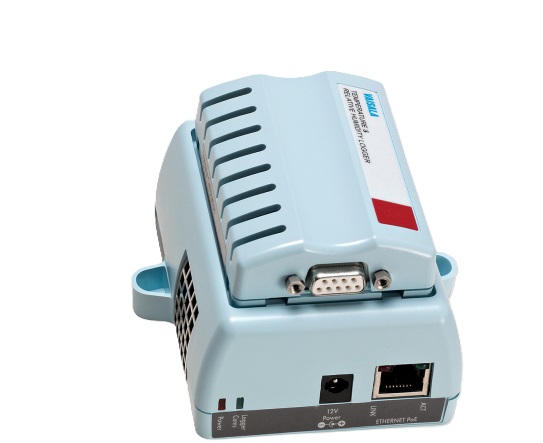

VAISALA CDL-VNET-LPC vNet Power over Ethernet Data Logger Interface (−25 … +70 °C (−13 … +158 °F), 15VDC)

- Heating Effect on Measurements:

Not to be used for data loggers with internal sensors

- Ethernet connectivity: IEEE 802.3af (Class 1), bandwidth 10Base-T

- Connectivity cable: Category 5/5e; RJ-45 connector; 1.83 m (6 ft)

- Operating voltage: 12 … 30 VDC; Plugs into vNet jack labeled 12 V

- Output Voltage:

Nominal: 15 VDC

Maximum: 350 mW

- Power Consumption:

Typical: 900 mW

Maximum: 1.35 W

- Power Supply:

North America:

12 VDC / 0.5 A max. out

120 VAC in

International:

12 VDC / 1.66 A max. out

100 … 240 VAC in

- Dimensions (H × W × L): 43 × 102 × 102 mm (1.7 × 4.0 × 4.0 in)

- Weight: 180 g (6.3 oz)
