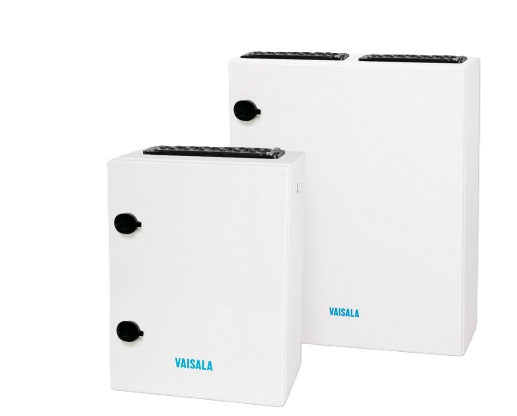

VAISALA CAB100B Cabinet (±60 Pa or ±0.25 in H2O)

- Cabinet Size:

Large (model CAB100B): 600 × 500 × 200 mm (23.62 × 19.69 × 7.87 in)

- Power:

+ Power supply

Within cabinet: 24 VDC / 2.5 A

To cabinet: 110 … 240 VAC

+ Power over Ethernet: Power over Ethernet, with loop power, without fan

- Analog Channels: 4 … 32 channels: 4 … 20 mA

- Safety Barrier: 1 … 16 pieces: 1 barrier per channel

- Galvanic Isolator: 1 … 12 pieces: 1 isolator per channel

- Differential Pressure: 1 … 12 pieces ±60 Pa or ±0.25 in H2O

- Ethernet Communication:

Large cabinet: Up to 2 serial-to-Ethernet devices via RJ45 (DIGI PortServer TS4)
