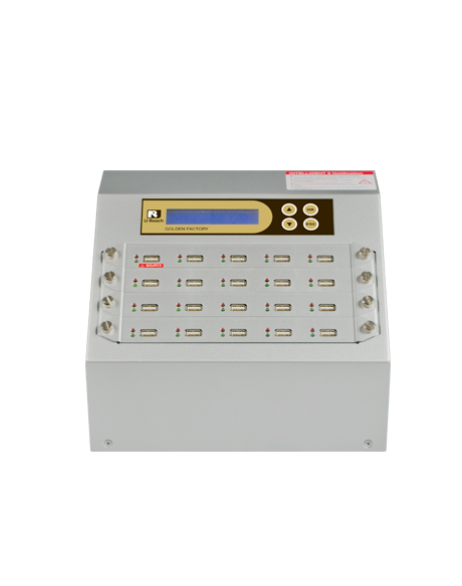

Ureach UB920G USB Duplicator and Sanitizer (1-19 targets, 2GB/min)

Targets: 1-19

Speed: 2GB/min. (33MB/sec.) *Actual performance is dependent on media transfer speeds

Capacity

Embedded controller is designed to support capacities over 18TB+.

Constant improvement supports latest market-available devices.

Operating Type

Supports PC link for monitoring and event log report output

Stand alone operation

Language Support: English, Japanese

Display: Monochrome LCD Display

Status LED: LED(Red/Green) on each slot

Control Button: 4 push buttons(▲, ▼, OK, ESC)

Copy Function: Quick Copy (Systems & Files Copy)/Whole Media

Compare Function: Bit by Bit data comparison

Diagnostic Function

Speed Test; Capacity Test; A2 Fake Card Test

H3 Test: Read only testing

H5 Test: Read & Write testing

H6 Test: Read & Write testing without data area

Erase Function: Quick Erase; Full Erase; DoD Erase

Format Function: FAT16/32 Format

Use Port 2 as Compare Source: To prevent copy fail caused by worn source

Log Manager: Records all task details and can general report in .txt and .csv format.

PC-Link: Real-time PC Monitoring

Burn-in Test: Ranges from 30 mins to 30 days

Flash Devices Compatible: USB 2.0/ USB 1.1/ USB Flash/ USB 3.0/ USB HDD

USB Write Protection: Specified USB Required.

Format Supported

Quick Copy: FAT16/32/64, NTFS, Linux(Ext2/Ext3/Ext4), MAC(HFS, HFSX, HFS+)

Whole Media Copy: All Formats

File System Supported: All (Windows, Linux, Other stand-alone systems)

Power Supply: 12V Adapter

Working Temperature: 5°C ~ 45°C

Storage Temperature: -20°C ~85°C

Working Humidity: 20% ~ 80%

Storage Humidity: 5% ~ 95%

Dimension(cm): From 24.1x19.5x11.5 to 45x30x29.5

Weight(kg): From 1.9 to 19
