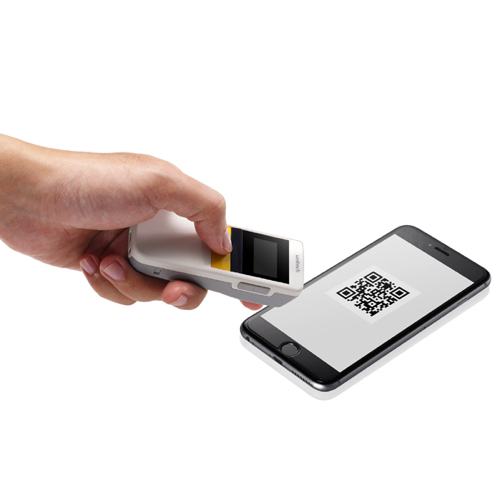

Unitech MS926 Wireless Pocket 2D Scanner (CMOS 640 x 480 pixel; 10 cm/s)

Display: 1 inch OLED, 128 x 64

Operating System: Proprietary, Connects to host with Windows, Android and iOS

Memory: 64 Kbyte SRAM / 2 MB Flash ROM

Keys: 3 keys: Page Up, Page Down, Scan with power, power on/off feature

Sensor: CMOS sensor with 640 x 480 pixels

Illumination: White LED with CCT 5000K

Scan Rate: 30 frames per second

Pitch Angle: ± 45°

Optical Resolution: Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus

Print Contrast: 35%

Depth of Field: (DOF PCS=80%)

Symbology | Density | Near | Far

100% UPC | 5.5 cm | 28 cm

Code 39, 5 mils | 6.1 cm | 13 cm

Code 39, 20 mils | 6 cm | 38 cm

PDF417, 6.7 mils | 6 cm | 12.5 cm

Data Matrix, 10 mil | 6 cm | 13 cm

QR, 20 mil | 5 cm | 23 cm

Bluetooth: Bluetooth 2.1+EDR, Class 2

Wireless Coverage: Up to 30 feet (Open space)

Interface: Wireless SPP & HID profile

Supported Host Interface: Micro USB

Dimensions: H21.1W36.9L95.9mm

Weight: 63g

Trigger Switch Life: 10 million cycles

Operating Modes: Trigger Mode, Presentation Mode, Auto Mode, Batch Mode, Wedge Mode

Barcodes: 1D, 2D

Operating Voltage: DC 3V to 5V

Current Consumption: Operating: 400mA, Standby: 160mA

Battery Type: Rechargeable Li-ion Battery

Battery Capacity: 680mAh

Battery Charging Time: Fully charged within 4 hours

Operating Time: 5 hours at 1 scan/5 seconds

ESD Protection: Functions after 8K Contact and 12K Air

Mechanical Shock: 1.5m drop to concrete (scanner only)

Operating Temperature: 0°C to 50°C

Storage Temperature: -30°C to 70°C

Relative Humidity: 95% non-condensing

Standard: IP42

Accessories (optional):

■ Lanyard Beeper

■ Micro USB to USB Converter Cable

■ 1 & 5 Slot Charging Cradle (optional)

Certifications: CE, FCC, BSMI, VCCI
