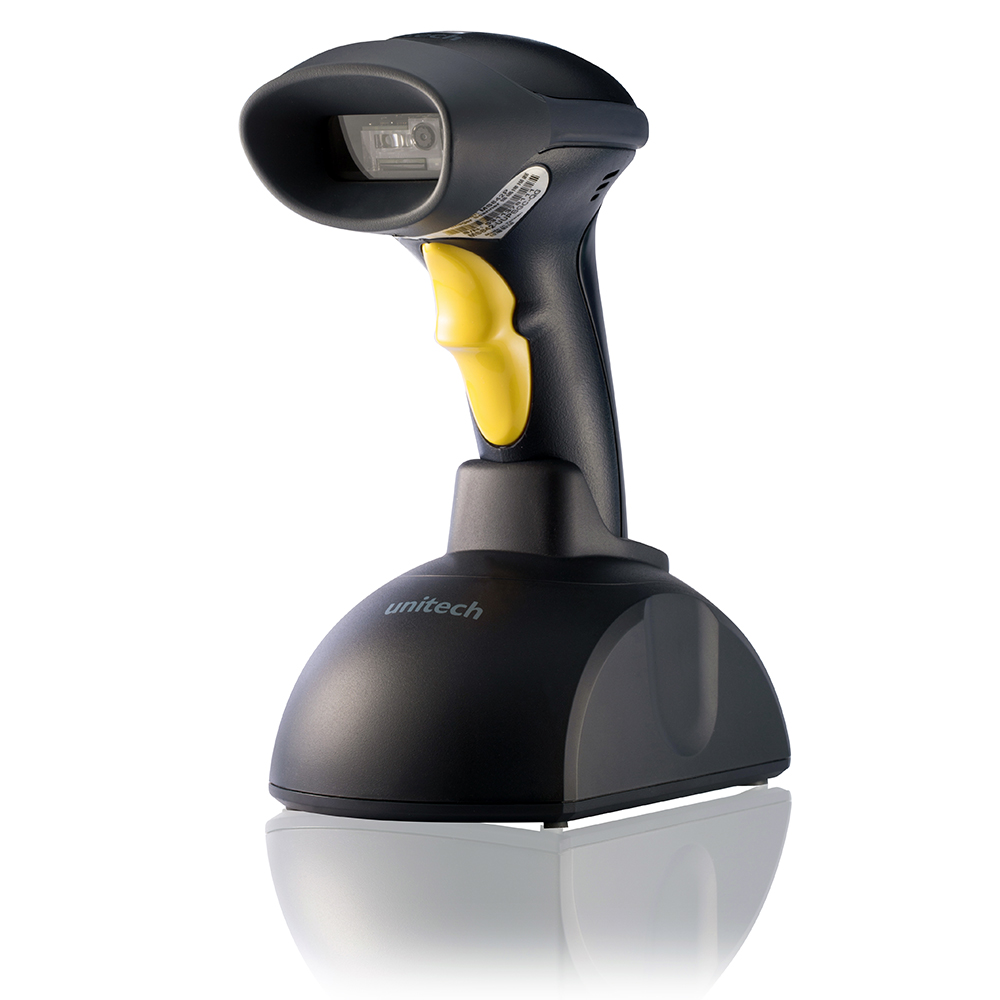

Unitech MS842P Wireless 2D Imager Scanner (1280 x 960 pixel; SR: 3 mil, 5 mil)

Sensor: CMOS sensor, 1280 x 960 pixels

Aiming Element: 655nm Laser

Illumination: 2 x Warm white LEDs

Pitch Angle: ±60°

Optical Resolution: SR: 3 mil (Code 39), 5 mil (PDF417)

Depth of Field: (DOF PCS=80%)

3 mil Code 39 | 2.8 in./7.1 cm (Near) | 6.2 in./15.8 cm (Far)

5 mil PDF417 | 3.0 in./7.6 cm (Near) | 8.1 in./20.6 cm (Far)

Communication: 2.4GHz unlicensed

Supported Host Interface: USB (via Cradle or dongle)

Dimensions: 176x74x89mm

Weight: 210g (without cable)

Trigger Switch Life: 10 million cycles

Barcodes: 1D, 2D

Operating Voltage: DC 3V to 5V

Current Consumption: Operating Mode: 80.6mA, Standby Mode: 14.6mA

Indicators: LED & Beeper & Vibrator

ESD Protection: Functions after 8K Contact and 12K Air

Drop Shock Resistance: 1.8m to concrete (scanner only)

Operating Temperature: 0°C to 50°C

Storage Temperature: -30°C to 70°C

Standard: IP42

Accessories (Optional):

■ Cradle (PN# 5000-900039G)

■ Dongle (PN# 5500-900086G)

■ Battery Pack (PN# 1400-900014G)

■ USB cable for dongle (PN# 1550-900058G)

■ USB cable for cradle (PN# 1550-600626G)

■ Power Adapter (PN# 1010-900014G)

Certifications: CE, FCC, BSMI, VCCI, TAA compliant

Wireless Coverage: 10M (line of sight)

Cradle Dimensions: 98x107x45mm

Battery Type: Lithium-ion

Battery Capacity: 1620mAh charged via cradle

Battery Charging Time: Fully charged in 4 hours

Operating Time: More than 12 hours
