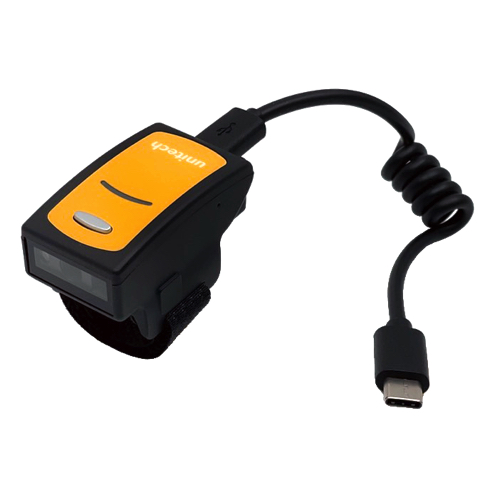

Unitech MS622 Wired 2D Ring Scanner (640 x 480 pixel; ≥ 5 mil)

Sensor: CMOS sensor (640 x 480 pixels)

Aiming Element: White LED, Red LED (625nm)

Scan Rate: 30 frames per second

Pitch Angle: ± 60°

Roll Angle: 360°

Optical Resolution: ≥ 5 mil

Depth of Field: (Environment: 800 lux)

5 Mil Code 39: 45 ~ 145 mm

13 Mil UPC/EAN: 65 ~ 345 mm

6.67 Mil PDF417: 55 ~ 120 mm

15 Mil QR Code: 35 ~ 165 mm

10 Mil Data Matrix: 50 ~ 115 mm

Wireless Coverage: Up to 100M (Open space)

Supported Host Interface: USB VCP, USB HID

Dimensions: 27.6 x 46.2 x 26.8 mm

Weight: 14g (without cable)

Trigger Switch Life: 100,000

Barcodes: 1D, 2D

Operating Voltage: DC 5V±5%

Current Consumption: Working current: <135mA; Standby current: <15mA

ESD Protection: Functions after 4KV contact, 8KV air discharge

Mechanical Shock: 1.5M drop to concrete (scanner only)

Operating Temperature: -20 ~ 55˚C

Storage Temperature: -40 ~ 70˚C

Relative Humidity: 0% ~ 95%RH (Non-condensing)

Standard: IP42

Accessories (optional): Micro USB to USB Type-C Cable (PN#1550-905916G)

Certifications: FCC, CE

Scan Rate: 60 frames/second
