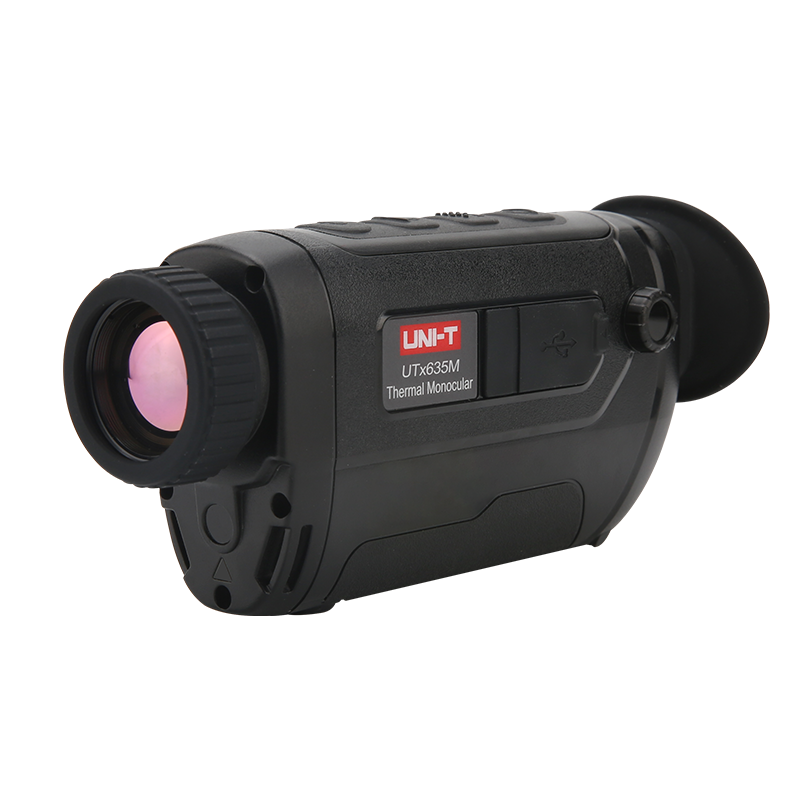

UNI-T UTx635M Thermal Monocular (0.39" OLEO (1024x768))

Display: 0.39" OLEO (1024x768)

IR resolution(Pixels): 640x512

Pixel size: 12µm

Frame rate: ≤ 50Hz

Thermal sensitivity(NETD): ≤ 25mK

Focus: Manual focus

Lens focal length: 35mm

Field of view(FOV): 12.5°(H) x 10°(V)

Diopter adjustment: -4D~+5D

Calibration modes: Auto, Manual, Background

Stadiametric ranging: Yes

Smart standby: Yes

Video recording: Yes

Wi-Fi live streaming: Yes

Analysis software: APP(Android & iOS)

Battery: 3200mAh detachable Li-ion battery (T-M20)

Operating time: ≥ 3.5 hours

USB: Type-C

Protection: IP 67 & 2m drop proof

Certificates: EAC,CE, FCC, RoHS

Languages: EN, FR, DE, ES,IT, RU, UA

Weight: 357g

Dimensions: 160mmx71.5mmx38.5mm

Datasheet

User manual
