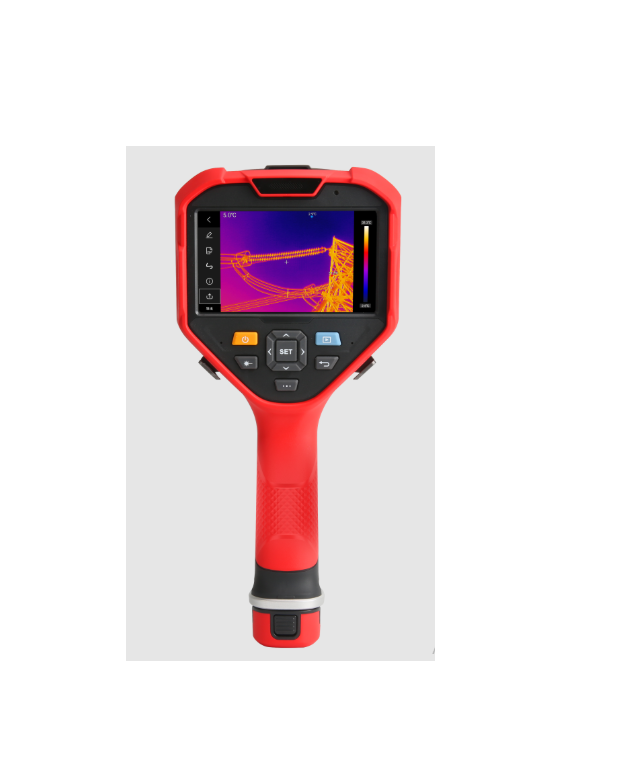

UNI-T UTi760X Expert Thermal Imager (-20℃～1200℃, 1000℃～2200℃, 1280×1024Pixels)

Display: 5′ IPS Touch (1280×720)

IR resolution(Pixels): 640×512

Super resolution(Pixels): 1280×1024

Spectral range: 7.5～14μm

Pixel size: 12μm

Frame rate: 30Hz

Thermal sensitivity(NETD): 35mK

Focus mode: Continuous AF/Semi-auto Focus/Laser Assisted Focus/Touch AF/Manual Focus

Focusing time: <2s

Lens recognition: ✔

Lens calibration: ✔

Temperature measurement range: Conventional Lens: -20℃～1200℃  High Temp. Lens: 1000℃～2200℃

Accuracy:

±2°C for -10°C~0°C

±1.0°C/±1.0% for 0°C~120°C

±1.5°C/±1.5% for 120°C~1200°C

±1.5% for 1000°C~2200°C (whichever is greater, room temperature of 25℃, conventional lens)

Functions

Color palettes: White Hot, Black Hot, Red Hot, Ironbow, Rainbow, Rainbow HC, Lava. Customized palette & color inversion are supported

Image modes: Thermal, Visual image, Fusion, T-Mix, PIP, dual-channel image

On screen analyzer: 16 Points/16 Lines/16 Rectangles/16 Circles. T-select is supported

Level & span: Auto/Manual/Touch

HI/LO temperature alarm: LCD animation, LED flashlight, Buzzer

HI/LO temperature tracking: ✔

ROI correction: Supports regional emissivity correction

Digital camera resolution: 13MP

Digital zoom: ✔

Photo capturing / Video recording: ✔

Full-screen thermal radiometric video stream: ✔

T-Contrast: ✔

T-Sharp: ✔

Smart meter: ✔

AI voice: ✔

OTA upgrade: ✔

QR code scanning: ✔

Text/Voice annotation: ✔

HDMI display extension: ✔

WiFi / Wi-Fi live streaming: ✔

Bluetooth: ✔

Laser pointer: ✔

LRF: 0.1～50m (Class 2, red)

LED lighting: ✔

Analysis software: PC+APP

General Characteristics

Battery: 7.2V/5000mAh rechargeable & detachable Li-ion battery pack

Operating time: ≥5 hours

Charging system: Type-C direct charging / Independent charging of the battery pack

Charging time: Charging to 90% in 2.5 hours (Power off charging or independent charging of the battery pack)

USB: Type-C USB, Micro HDMI

Storage:. Built-in 128G, support SD expansion

Image storage format: JPG

Video storage format: MP4/UIR

Working temperature: -20℃～55℃

Storage temperature: -40℃～60℃

Working humidity: 10%～95%RH，noncondensing

Protection: IP54 & 2m drop proof
