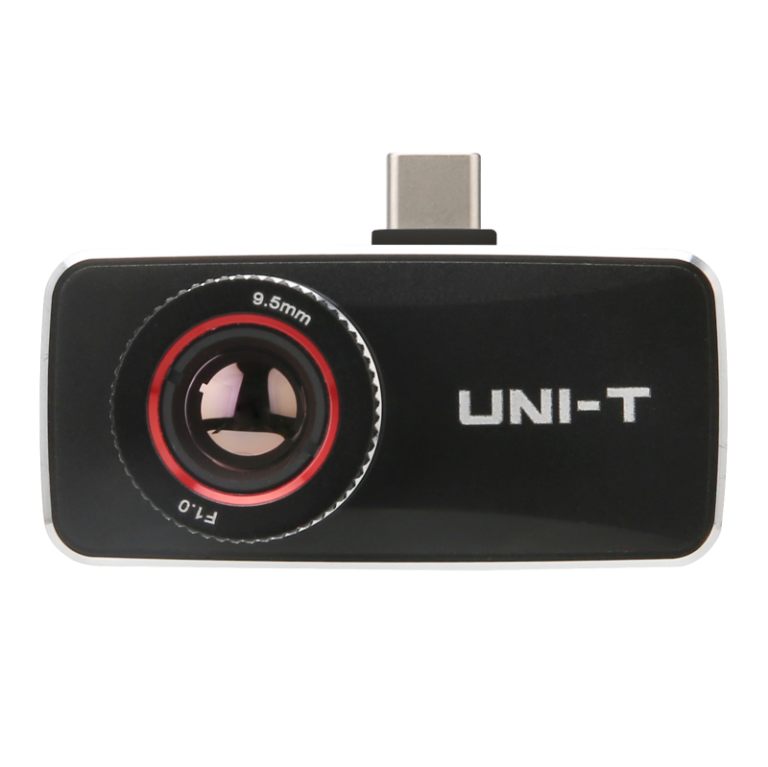

UNI-T UTi740MS Thermal Imager for Smart Phone (8~14µm, -20℃ ~ 550℃)

IR resolution (Pixels): 400×300

Spectral range: 8~14µm

Pixel size: 12µm

Frame rate: ≤25Hz

Thermal sensitivity (NETD): ≤45mK @25℃

Focus: Manual Focus

Lens focal length: 9.5mm

Field of view (FOV): 29° (H) × 21.5° (V)

Measurement modes: Industrial & EST screening

Temperature measurement range: -20℃ ~ 550℃

Accuracy:

Industrial: ±2° or ±2%, whichever is greater (-10℃ ~ 550℃)

EST: ±0.5° (20℃ ~ 50℃)

Color palettes: Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC

Image modes: Thermal, Fusion, PIP

On screen analyzer: 5 Points / 1 Line / 3 Rectangles / 3 Circles

Isotherm: Auto / Below / Above / Section / Manual

Hi/Lo temperature alarm: LCD animation & Buzzer

Hi/Lo temperature tracking:√

Video recording: √

General Characteristics

USB: Type-C

Image storage format: JPG

Video storage format: MP4

Certificates: CE, FCC, RoHS

Languages: ZH, EN, FR, DE, IT, ES, SV, PL, CZ

Weight: 46g

Dimension: 58mm × 27mm × 28.6mm
