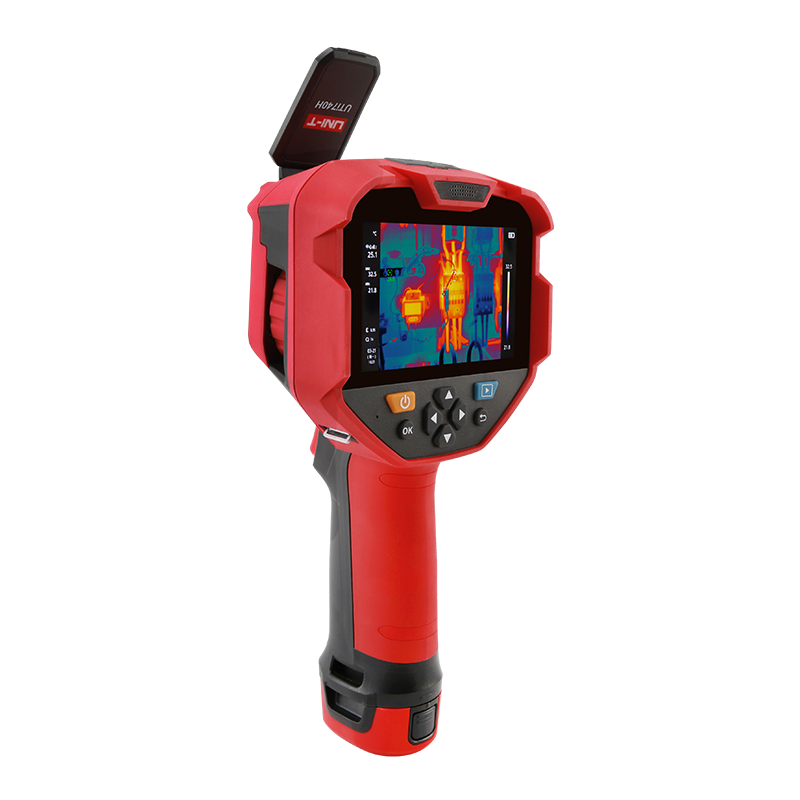

UNI-T UTi740H Professional Enhanced Thermal Camera (384×288; -30℃ ~ 650℃; 1.3mrad)

Technical Data

IR resolution (Pixels): 384×288

Display: 4.3″ IPS (800×480)

Field of view(FOV): 28°×21°

Thermal sensitivity(NETD): ≤60mK

Spatial resolution(IFOV): 1.3mrad

Frame rate: ≤25Hz

Focus: Manual

Temperature measurement range: -30℃ ~ 650℃

Accuracy:±2℃ or ±2% whichever is greater

Emissivity: 0.01~1.00 adjustable (0.95 default)

Functions

Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)

Image modes: Thermal,Visual image,Fusion,PIP

On screen analyzer: 5 Points/1 Line/5 Rectangles/5 Circles

Digital camera resolution: 5MP

Digital zoom: 1x, 2x, 4x

Hi/Lo temperature alarm: Icon

Isotherm: 2 (Auto/Manual)

Software analysis: PC+APP

Wi-Fi

General Characteristics

Battery: Detachable Li-ion battery pack(3.7V 5200mAh)

Battery operation time: About 5 hours (with Wi-Fi off)

USB: Type-C

IP rating: IP54

Drop proof: 2m

Storage: 32GB Micro SD card

Image/Video storage format: BMP

Certificates: CE,UKCA,FCC,RoHS

Product net weight: 806g

Product size: 266.02mm×126.66mm×136mm

Packing Details

Standard accessories: Micro SD card, Type-C USB cable, English manual, Li-ion battery pack, Hand strap
