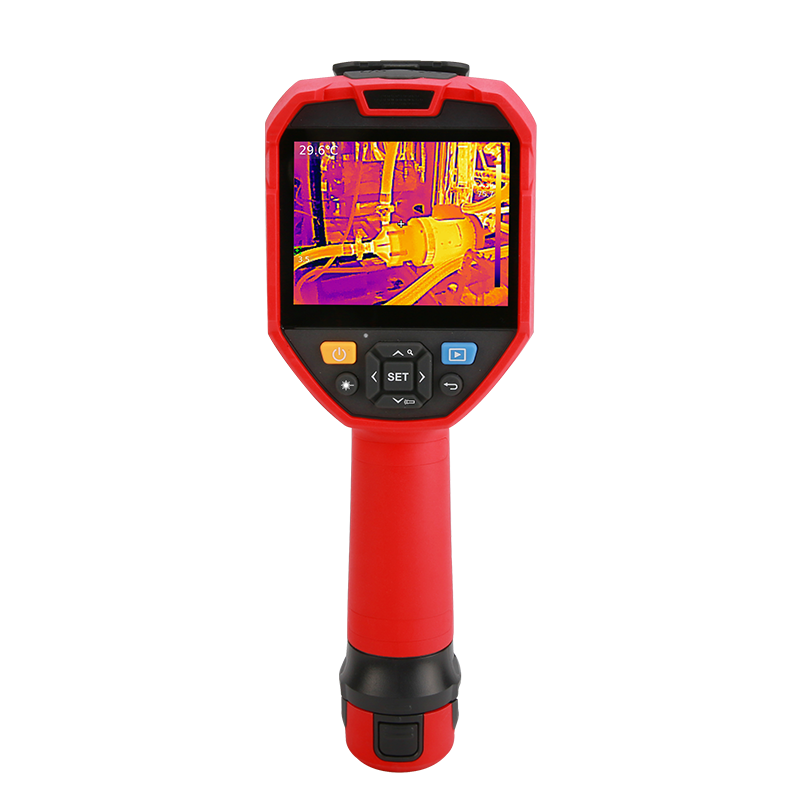

UNI-T UTi720V Professional Enhanced Thermal Camera (-20℃ ~ 550℃; 256×192Pixel)

Technical Data

Display: 3.5″ IPS Touch (640×480)

IR resolution(Pixels): 256×192

Spectral range: 8~14µm

Pixel size: 12µm

Frame rate: ≤25Hz

Thermal sensitivity(NETD): ≤50mK

Focus: Focus Free

Field of view(FOV): 56°(H) × 42.2°(V)

Temperature measurement range: -20℃~550℃

Accuracy: ±2℃ or ±2% whichever is greater

Functions

Color palettes: White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava

Image modes: Thermal, Visual image, Fusion (T-Mix), PIP

On screen analyzer: 5 Points/1 Line/3 Rectangles/3 Circles

Isotherm: Auto/Manual

Hi/Lo temperature alarm: LCD animation, LED flashlight, Buzzer

Hi/Lo temperature tracking: √

Digital camera resolution: 5MP

Digital zoom: 2x, 4x

Video recording: √

Voice recording: √

Wi-Fi: √

Wi-Fi live streaming: √

LED lighting: √

Laser pointer: √

Laser distance measurement: √

Analysis software: PC+APP

General Characteristics

Battery: 5200mAh detachable Li-ion battery pack (UT-M17)

Operating time: ≥4 hours (with Wi-Fi off)

USB: Type-C

Storage: 32GB Micro SD card

Image storage format: JPG

Video storage format: AVI

Protection: IP54 & 2m drop proof

Certificates: CE, UKCA, FCC, RoHS

Languages: EN, FR, DE, IT, ES, SV, PL, CZ

Weight: 654g

Dimension: 260mm×97mm×99mm

Standard accessories: Type-C USB cable, Micro SD card, Li-ion battery pack×2, Quick Start Guide, Documents Download Operation Guide; Macro Lens–UT-Z003 (Optional)
