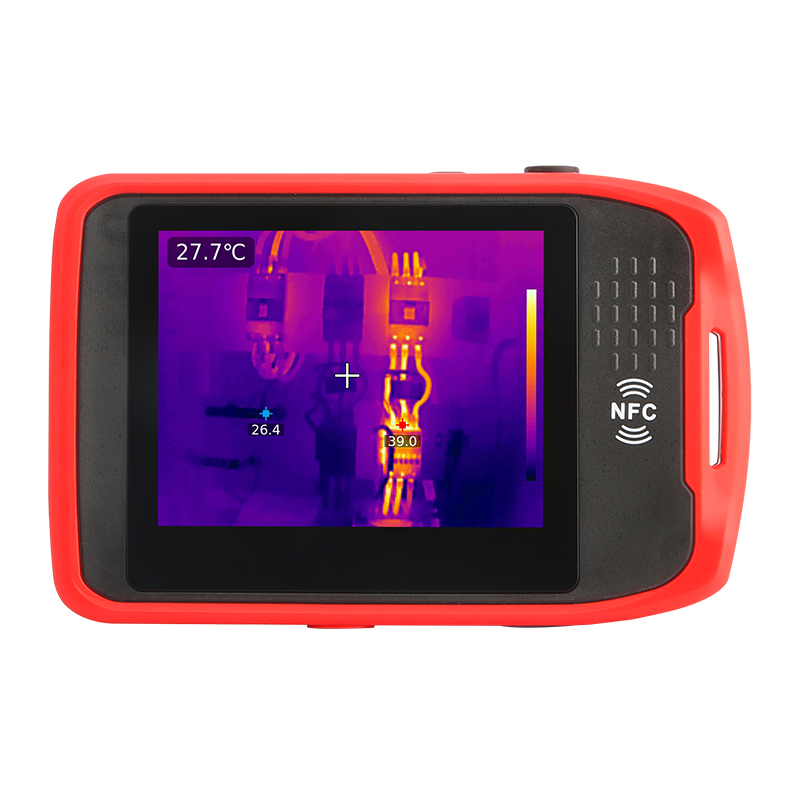

UNI-T UTi720T Portable Thermal Camera (-20°C ~ 550°C, 256×192Pixels)

Display: 3.5'' TFT Touch (640×480)

IR resolution(Pixels): 256×192

Pixel size: 12µm

Frame rate: ≤25Hz

Thermal sensitivity(NETD): ≤50mK

Focus: Focus Free

Field of view(FOV): 56°(H) × 42°(V)

Temperature measurement range: -20°C~550°C

Accuracy:  ±2°C or ±2% whichever is greater

Functions

Color palettes: White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC

Image modes:Thermal, Visual image, Fusion (T-Mix), PIP

On screen analyzer: 5 Points/1 Line/ 3 Rectangles/ 3 Circles

Isotherm: Auto/Manual/Above/Below/Section/Ratio

Hi/Lo temperature alarm: LCD animation, LED flashlight

Hi/Lo temperature tracking: √

Digital camera resolution: 2MP

Digital zoom: 1.0~8× continuous

Video recording: √

Wi-Fi / Wi-Fi live streaming: √

LED lightning: √

Bluetooth: √

NFC: √

Analysis software: PC+APP

General Characteristics

Battery: 1800mAh rechargeable Li-ion battery

Operating time: ≥2.2 hours (with Wi-Fi off)

USB: Type-C

Storage: 12GB Internal

Image storage format: JPG

Video storage format: .avi

Protection: IP54 & 1m drop proof

Certificates: CE, FCC, RoHS

Languages: EN, FR, DE, ES, IT, SV, PL, CZ

Datasheet
