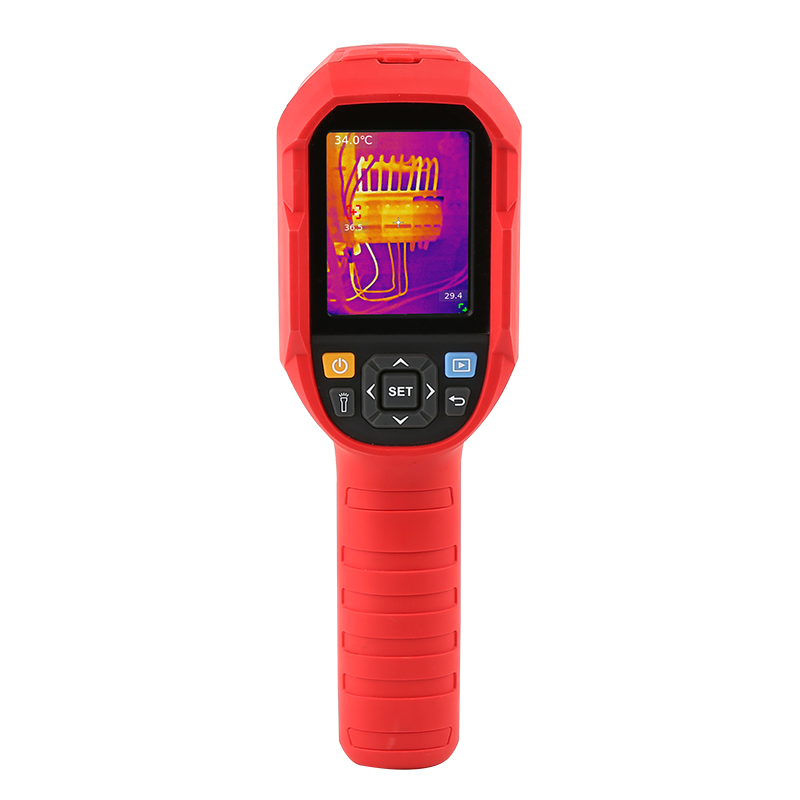

UNI-T UTi720B Heavy Duty Thermal Camera (-20℃ ~ 550℃, 256×192 Pixel)

Display: 2.8” TFT (320×240)

IR resolution (Pixels): 256×192

Super resolution (Pixels): Yes (512×384)

Spectral range: 8~14µm

Pixel size: 12µm

Frame rate: ≤25Hz

Thermal sensitivity (NETD): ≤50mK

Focus: Focus Free

Field of view (FOV): 56° (H) × 42° (V)

Spatial resolution (IFOV): 3.75mrad

Temperature measurement range: -20℃ ~ 550℃

Accuracy:

From 20℃ to 120℃: ±1.5℃ or ±1.5%, whichever is greater

From -10℃ to 20℃ and 120℃ to 550℃: ±2℃ or ±2%, whichever is greater

Functions

Color palette: White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC

Image mode: Thermal, Visual image, T-Mix fusion, PIP

On screen analyzer: 5 Points / 3 Rectangles

HI/LO temperature alarm: LCD animation, LED flashlight, Buzzer

HI/LO temperature tracking: √

Digital camera resolution: 2MP

Video recording:√

Wi-Fi / Wi-Fi live streaming:√

LED lighting:√

Analysis software: PC + APP

General Characteristics

Battery: 5000mAh rechargeable Li-ion battery

Operating time: ≥7 hours

USB: Type-C

Storage: Built-in 32GB

Image / video storage format: JPG / MP4

Protection: IP65 & 2m drop proof

Certificates: CE, FCC, RoHS

Languages: EN, FR, DE, IT, ES, SV, PL, CZ

Weight: 600g

Dimension: 236mm × 75.5mm × 86mm
