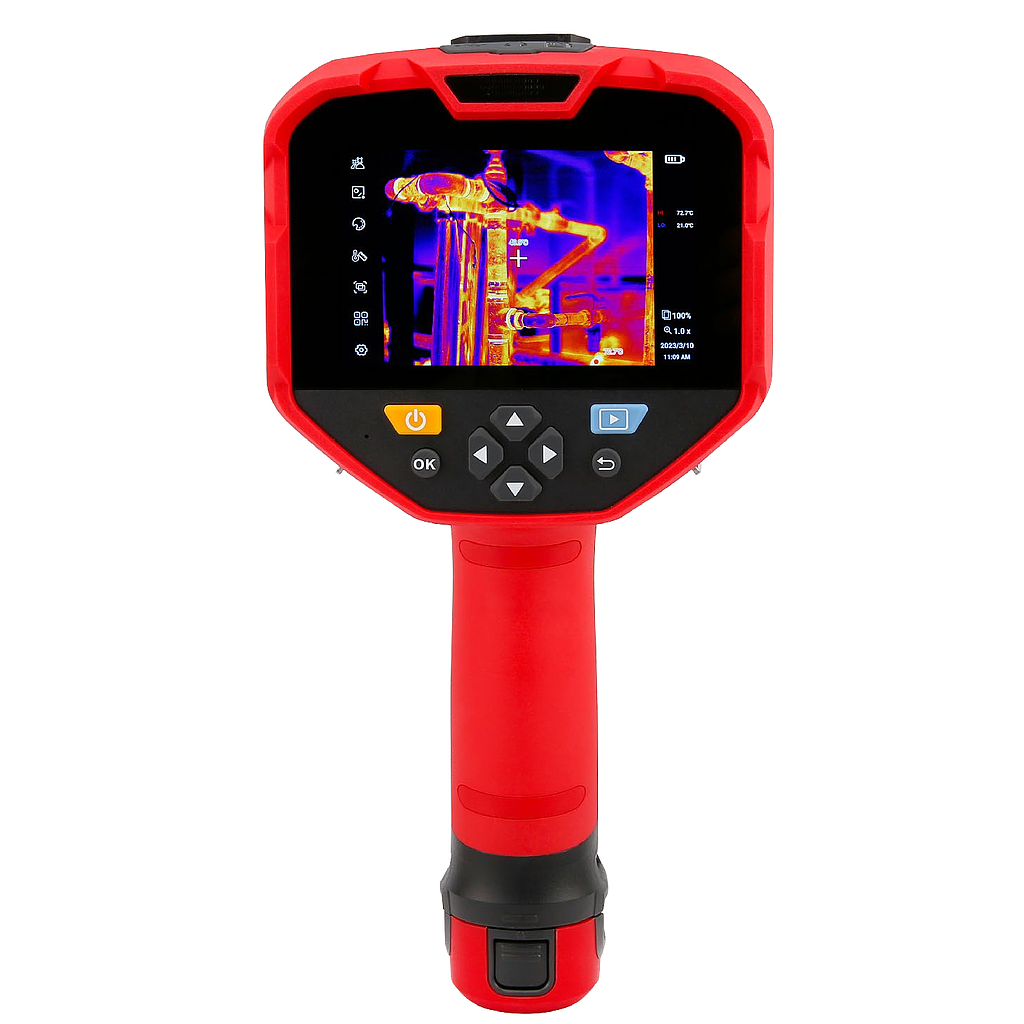

UNI-T UTi640Q Thermal Imaging Imager (640x512pxl)

Compatible: 640x512 infrared resolution

Display Size: 2.0 - 3.9 Inches

Support: touch screen

Wavelength range: 8-14μm

Pixel spacing: 12μm

Frequency: 50Hz

Thermal sensitivity (NETD): ≦60mk

Focus mode: manual

Thermal imaging lens focal length: 13.0mm

Temperature measuring unit:℃/℉/K

Field of view (FOV): 32.9 x 26.6.

Temperature measurement accuracy: 2℃ or 2% (whichever is greater)

Temperature measurement resolution: 0.1℃

Image mode: infrared, visible light fusion, visible light, picture in picture.

Color palette: 7 color

Battery type: 5200mAh (detachable battery UT-M17)

Visible light resolution: 5 million pixels

Battery working time is more than 5h (wifi is turned on for more than 2.5h)

Protection grade: IP54

Fall protection: 2m

AI function: AI human body recognition-automatically tracking tasks and generating temperature measuring frames.

Isotherm: √

Emissivity setting: √

Taking pictures: √

Video recording: √

Image format: JPG

Video format: MP4

Working temperature: -10 to 50℃

Storage temperature: -20 to 60℃

External storage: standard 32G, supporting hot plug

Certification: CE, FCC, ROHS, UKCA Package include: UTI640Q*1; 32GB TF card*1; Instructions1conformity *1; USB data cable*1; Detachable battery (UT-M17)*2
