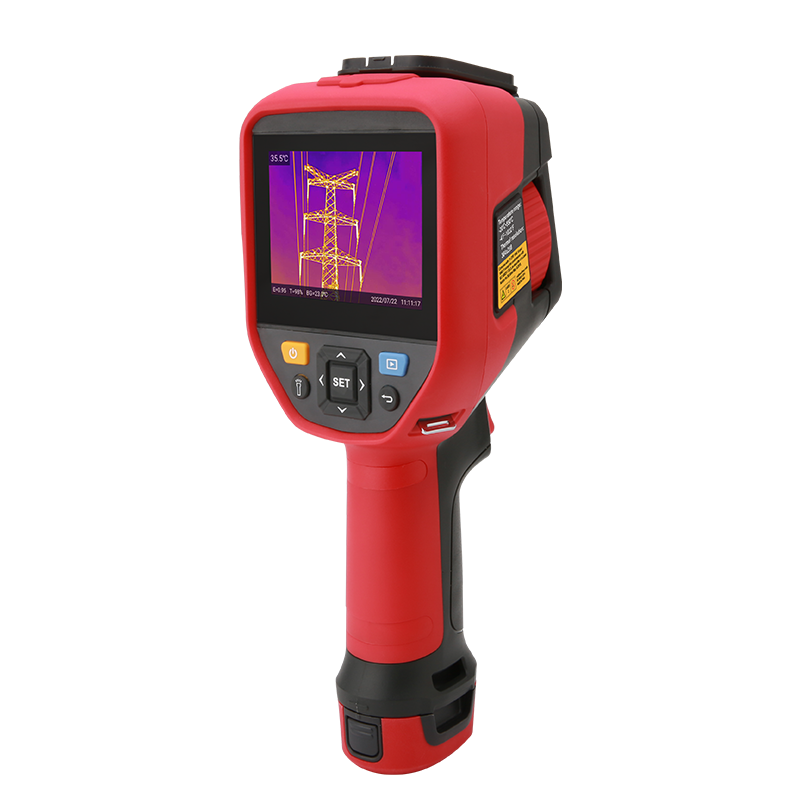

UNI-T UTi384G Professional Enhanced Thermal Camera (384×288; -20℃~550℃; 1.91mrad)

Technical Data

IR resolution (Pixels): 384×288

Display: 3.5‘’ IPS Touch (640×480)

Field of view(FOV): 42°×30°

Thermal sensitivity(NETD): ≤40mK

Spatial resolution(IFOV): 1.91mrad

Frame rate: ≤25Hz

Focus: Manual

Temperature measurement range: -20℃~550℃

Accuracy: ±2℃ or ±2% （whichever is greater）

Emissivity: 0.01~1.00 adjustable (0.95 default)

Functions

Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)

Image modes: Thermal,Visual image,Fusion,PIP

On screen analyzer: 5 Points/5 Lines/5 Rectangles/5 Circles

Digital camera resolution: 5MP

Digital zoom: 2x, 4x

Hi/Lo temperature alarm: Icon

Isotherm: 5(Auto/Manual/Above/Below/Section)

Software analysis: PC+APP

Video recording

Voice recording

Wi-Fi / Bluetooth

Laser pointer

General Characteristics

Battery: Detachable Li-ion battery pack(3.7V 5200mAh)

Battery operation time: About 5 hours (with Wi-Fi off)

USB: Type-C

IP rating: IP54

Drop proof: 2m

Storage: 8GB Internal; 32GB External

Image/Video storage format: pic: JPEGl; video: MP4/irgd

Certificates: CE,UKCA,FCC,RoHS

Product net weight: 880g

Product size: 261mm×104mm×97mm

Packing Details

Standard accessories: Micro SD card,Type-C USB cable, English manual, Li-ion battery pack,Documents download operation guide card

Standard individual packing: Toolbox,Gift box
